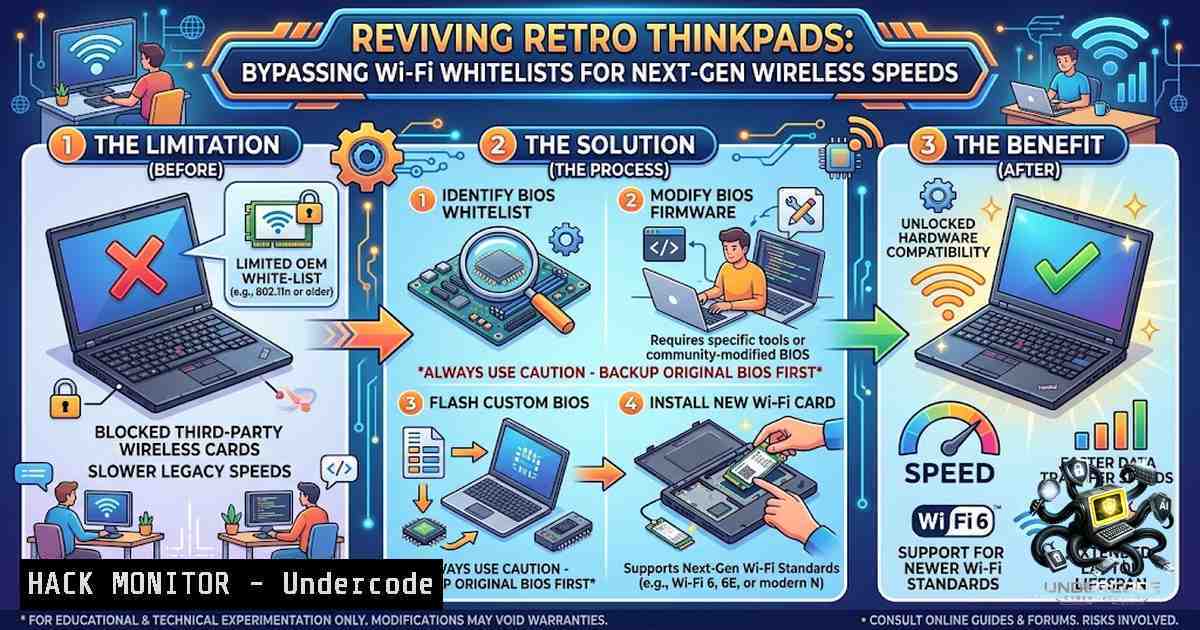

Featured Image

Introduction:

Lenovo’s ThinkPad legacy machines are renowned for their durability, repairability, and passionate community following. However, one persistent barrier has frustrated retro-enthusiasts for years: the BIOS whitelist—a hardware restriction that prevents the installation of unauthorized wireless cards. When users attempt to upgrade to modern Wi-Fi 6 cards like Intel AX200 or AX210, the system throws an Error 1802 (“Unauthorized wireless network card is found”) and refuses to boot. This article explores software-based and hardware-based methods to bypass this restriction, unlocking gigabit wireless speeds on vintage ThinkPads without hacking the BIOS in destructive ways.

Learning Objectives & Secrets:

  • Objective 1: Understand the BIOS whitelist mechanism and identify whether your ThinkPad model supports soft-modding via 1vyrain (xx30 series: X230, T430, T430s, T530, W530).

  • Objective 2 (Secret Tip): For Haswell and newer models (T440p, W540, T540, etc.), soft-modding is not possible—you must use a CH341A external programmer with an 8-pin SOIC clip to dump, patch, and re-flash the BIOS chip directly. This method is riskier but equally effective.

  • Objective 3 (Secret Tip): After removing the whitelist, modern Mini-PCIe Wi-Fi 6 cards (e.g., Intel AX210, AX200) become plug-and-play. Ensure you install the correct drivers—Windows 10/11 requires Intel’s latest drivers, while Linux distributions typically need the `iwlwifi` firmware package.

You Should Know:

1. Software-Based Whitelist Removal Using 1vyrain (xx30 Series)

The 1vyrain project, developed by n4ru, is a LiveUSB bootable exploit chain that unlocks the BIOS region for flashing without any external hardware. It removes the Wi-Fi whitelist, enables the Advanced Menu, and even allows overclocking.

Step‑by‑Step Guide:

  1. Verify Compatibility: Ensure your ThinkPad is one of the supported models: X230, X230t, T430, T430s, T530, or W530.

  2. Downgrade BIOS: Download IVprep from GitHub. Run `downgrade.bat` as Administrator in Windows. The system will reboot and automatically downgrade to the required version (e.g., T430 to v2.64). Before flashing, reset BIOS to defaults and ensure:
    – `Security → UEFI BIOS Update Option → Flash BIOS Updating by End-User` = Enable
    – `Secure RollBack Prevention` = Disabled

  3. Create 1vyrain LiveUSB: Download the 1vyrain ISO from 1vyra.in and write it to a USB drive using Rufus in DD mode.

  4. Boot and Flash: Disable SecureBoot, set UEFI boot mode, and boot from the USB. The script will auto-detect your model and present a modified BIOS. Select option 1 to flash. The machine will reboot several times—CRC security warnings are normal.

  5. Verify Success: Upon reboot, enter BIOS (F1). If you see an “Advanced” menu, the whitelist is removed. The BIOS will auto-upgrade to the latest unlocked version.

  6. Install New Card: Power down, install your new Mini-PCIe Wi-Fi 6 card (e.g., AX210), and boot into your OS to install drivers.

2. Hardware-Based Whitelist Removal (Haswell & Newer Models)

For ThinkPads like the T440p, W540, and T540, the BIOS does not support the 1vyrain software exploit. Here, an external CH341A programmer with a SOIC8 clip is required.

Step‑by‑Step Guide:

  1. Gather Tools: Purchase a CH341A programmer kit (approx. $10) including the 8-pin clip and connecting cables. You will also need a secondary Windows 7 machine (or VM) due to driver compatibility.

  2. Software Preparation: Download PhoenixTool, WinHex (or UltraEdit), and XSearch for hex editing. Obtain the CH341A software from the programmer vendor.

  3. Dump BIOS: Locate the BIOS chip on the motherboard (usually an 8-pin SOIC near the CMOS battery). Attach the SOIC8 clip securely. Use the CH341A software to read the BIOS chip and save the dump as bios_dump.bin.

  4. Patch the Whitelist: Open the dumped BIOS in WinHex. Search for the PCI Vendor/Device ID of the whitelisted cards and either remove the whitelist module entirely or replace the IDs with those of your new card. Tools like UEFIPatch can automate this.

  5. Flash Modified BIOS: Write the patched `bios_modified.bin` back to the chip using the CH341A software. Verify the write operation and checksum.

  6. Reassemble & Boot: Remove the programmer, reassemble the laptop, and install your new Wi-Fi card. The system should now boot without the 1802 error.

  7. Linux Driver Configuration for Intel Wi-Fi 6 Cards

Once the whitelist is removed and the new card is installed, Linux users may need to ensure the correct firmware is loaded.

Step‑by‑Step Guide:

  1. Identify the Card: Run `lspci -1n | grep -i network` to confirm the card is detected.

2. Install Intel Firmware: On Debian/Ubuntu-based systems:

sudo apt update
sudo apt install firmware-iwlwifi

On Fedora/RHEL:

sudo dnf install iwlwifi-firmware

3. Reload the Kernel Module:

sudo modprobe -r iwlwifi && sudo modprobe iwlwifi

This reloads the Intel wireless driver with the new firmware.

  1. Persistent Fix: If the card still isn’t recognized, manually copy the latest firmware from the Linux firmware git repository:
    git clone --depth 1 https://git.kernel.org/pub/scm/linux/kernel/git/firmware/linux-firmware.git
sudo cp linux-firmware/iwlwifi-.ucode /lib/firmware/
sudo modprobe -r iwlwifi && sudo modprobe iwlwifi

  2. Verify Connection: Use `iwconfig` and `nmcli dev wifi list` to confirm connectivity and link speeds.

4. Windows Driver & Performance Optimization

On Windows, installing the new Wi-Fi 6 card is straightforward but requires the correct drivers.

Step‑by‑Step Guide:

  1. Download Intel Drivers: Visit Intel’s Driver & Support Assistant or download the latest Wi-Fi drivers for AX200/AX210 directly.

  2. Device Manager Check: Open Device Manager → Network Adapters. If the card appears with a yellow exclamation, right-click and select Update driver → Browse my computer → point to the extracted driver folder.

  3. Disable Power Saving: For optimal performance, disable “Allow the computer to turn off this device to save power” in the card’s Power Management tab.

  4. Verify Speeds: Connect to a Wi-Fi 6 (802.11ax) router and check link speeds—expect 866 Mbps or higher.

5. Security & Risk Considerations

BIOS modification carries inherent risks. While 1vyrain is extensively tested with zero bricks during testing, hardware programmers can permanently damage the chip if misused.

Mitigation Strategies:

  • Always back up the original BIOS dump before flashing.
  • Ensure the laptop is connected to AC power and the battery is charged.
  • Clear all BIOS passwords before proceeding.
  • Understand that modifying the BIOS voids the warranty and may introduce instability.

6. Recommended Wi-Fi Card Upgrades

| Model | Interface | Wi-Fi Standard | Bluetooth | Best For |

|-|–|-|–|-|

| Intel AX210 | Mini-PCIe (adapter) | Wi-Fi 6E | 5.2 | Maximum future-proofing |
| Intel AX200 | Mini-PCIe (adapter) | Wi-Fi 6 | 5.0 | Broad compatibility |
| Intel 7260AC | Mini-PCIe | Wi-Fi 5 (AC) | 4.0 | Budget upgrade |

Note: Ensure you purchase Mini-PCIe variants of these cards, as M.2 versions (e.g., AX201) are not physically compatible with older ThinkPads.

What Undercode Say:

  • Key Takeaway 1: The BIOS whitelist is a deliberate hardware lock, but the community has developed both software (1vyrain) and hardware (CH341A) solutions to bypass it, breathing new life into vintage ThinkPads.

  • Key Takeaway 2: Upgrading to Wi-Fi 6 (AX200/AX210) is the single most impactful network performance upgrade for retro machines, delivering up to 10x the throughput of original 802.11n cards—transforming them from museum pieces into capable daily drivers for modern networks.

Analysis: The retro ThinkPad community exemplifies the broader “right-to-repair” and sustainability movement. By circumventing artificial restrictions, users extend the useful life of hardware that would otherwise be e-waste. However, the technical barrier remains high—average users may struggle with BIOS flashing or hex editing. The 1vyrain project lowers this barrier significantly for xx30 series, but Haswell owners still face a steep learning curve with hardware programmers. As Wi-Fi 7 becomes mainstream, expect similar whitelist challenges to emerge, perpetuating the cat-and-mouse game between manufacturers and the modding community.

Prediction:

  • +1 The 1vyrain project will inspire similar software-based jailbreaks for newer ThinkPad generations, as reverse-engineering efforts accelerate.

  • +1 Demand for Mini-PCIe Wi-Fi 6/6E adapters will surge, driving third-party manufacturers to produce more compatible, affordable options.

  • -1 Lenovo may respond with more aggressive BIOS signing and secure boot measures in future firmware updates, making whitelist removal significantly harder.

  • -1 As older ThinkPads age out of enterprise support, the community will increasingly rely on hardware programmers, reducing the accessibility of these upgrades for casual users.

  • +1 The rise of open-source firmware like coreboot and skulls will provide an alternative path, offering whitelist-free, fully open BIOS replacements for supported models.
