Introduction:

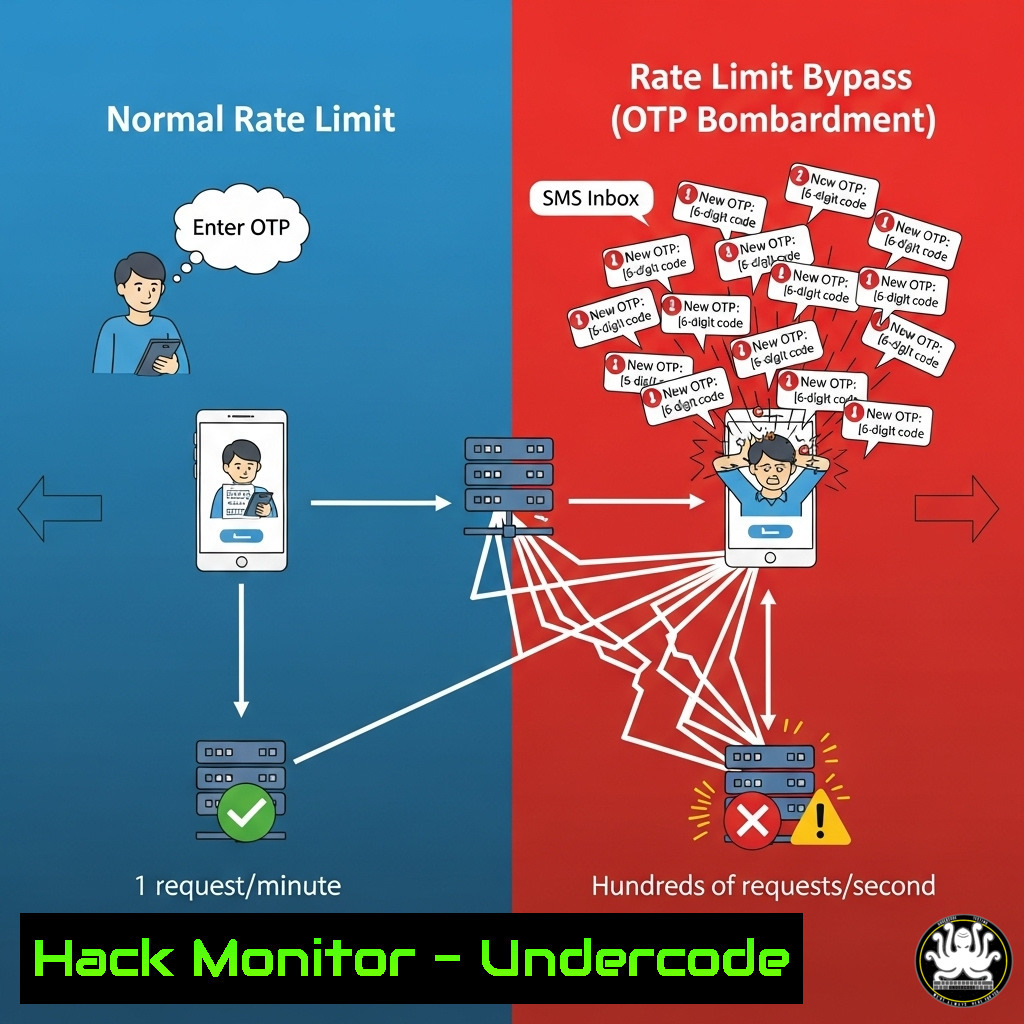

A recently disclosed vulnerability demonstrates the catastrophic potential of a seemingly minor misconfiguration: a rate limit bypass. This flaw allowed an attacker to send an unlimited number of One-Time Password (OTP) requests, ultimately leading to full account compromise. This incident underscores the non-negotiable necessity of robust API security and authentication controls in modern web applications.
Learning Objectives:
- Understand the mechanics and critical impact of rate-limiting bypass vulnerabilities.
- Learn to test for and identify weak rate-limiting implementations in authentication APIs.
- Implement best-practice mitigations to harden OTP and authentication endpoints against brute-force attacks.
You Should Know:
1. Testing for Rate Limit Headers with curl
`curl -I -X POST https://target-api.com/v1/otp/request -H “Content-Type: application/json” -d ‘{“phone”:”+1234567890″}’`
This command sends a POST request to an OTP request endpoint and retrieves the HTTP headers. The `-I` flag is crucial as it fetches the headers only. Analyze the response for headers like X-RateLimit-Limit, X-RateLimit-Remaining, and Retry-After. Their absence often indicates weak or non-existent rate limiting. Repeat this command rapidly in a loop or script; if the HTTP status code remains `200 OK` instead of changing to 429 Too Many Requests, the endpoint is likely vulnerable.
2. Automating OTP Request Flooding with Bash
`for i in {1..100}; do curl -s -o /dev/null -w “HTTP %{http_code}\n” -X POST ‘https://target-api.com/v1/otp/request’ -H ‘Content-Type: application/json’ -d ‘{“phone”:”TARGET_NUMBER”}’; done`
This Bash loop sends 100 consecutive OTP requests. The `-s` silences progress output, `-o /dev/null` discards the HTML response, and `-w` prints only the HTTP status code. Monitor the output; a long series of `HTTP 200` codes confirms the bypass is successful. This simple script is a fundamental tool for testing the resilience of any API endpoint against brute-force attacks.
- Bypassing Rate Limits via IP Rotation with Burp Suite
While automated scripts work, professional testing requires tools like Burp Suite. After capturing an OTP request, send it to the Intruder tool. Right-click the request ->Send to Intruder. In the `Positions` tab, ensure the attack type is set toSniper. Under the `Resource Pool` settings, enable `Maximum requests per IP address` and set it to a low number like 5. This configuration makes Burp Suite automatically rotate through its built-in IP addresses (if the `Allow upstream proxy servers to override the User-Agent IP address` option is enabled in Project settings > Network > Connections), effectively bypassing naive IP-based rate limiting.
4. Endpoint Manipulation for Path-Based Bypasses
Sometimes, rate limiting is applied inconsistently to different API paths or HTTP methods.
`curl -X GET https://target-api.com/v1/otp/request?phone=+1234567890`
`curl -X PUT https://target-api.com/v1/otp/request -d ‘{“phone”:”+1234567890″}’
`curl -X POST https://target-api.com/v1/OTP/request -d '{"phone":"+1234567890"}'` (note capitalization)
Test all verbs (GET, POST, PUT, DELETE, PATCH) and variations in endpoint paths (e.g.,,/v1/OTP/request,/v1/otp/request/). A common flaw is where a WAF or proxy enforces rate limits on `POST /v1/otp/request` but not onPUT /v1/otp/request`, allowing a simple verb change to bypass protection.
5. Header Injection to Spoof Client Identity
Applications might rate limit based on headers like X-Forwarded-For, X-Real-IP, or custom client tokens. You can attempt to spoof these.
`curl -X POST https://target-api.com/v1/otp/request -H “X-Forwarded-For: 1.2.3.$RANDOM” -H “Content-Type: application/json” -d ‘{“phone”:”+1234567890″}’`
This command randomizes a part of the `X-Forwarded-For` header with each request. If the application uses this header to identify the client for rate limiting instead of the true connection IP, you can bypass the control by making each request appear to come from a new client.
6. Exploiting OTP Code Predictability or Length
Once OTPs are flooded, the next step is exploiting weak OTP implementation. First, check the length and character set.
` Attempt a low-length brute force with ffuf`
`ffuf -w /usr/share/wordlists/seclists/Fuzzing/4_digit_numbers.txt -X POST -H “Content-Type: application/json” -d ‘{“phone”:”+1234567890″, “otp”:”FUZZ”}’ -u https://target-api.com/v1/otp/verify -mr “success”`
This uses the `ffuf` tool to brute-force a 4-digit OTP code. The `-mr “success”` flag matches responses containing the word “success”. If the OTP is only 4 digits (10,000 possibilities) and there is no lockout, it can be cracked quickly. Always test for account lockout policies after a number of failed attempts.
7. Mitigation: Implementing Robust Rate Limiting with Nginx
To prevent such attacks, server-side configuration is key. Below is an example Nginx configuration for a robust rate limit on the OTP endpoint.
`limit_req_zone $binary_remote_addr zone=otpzone:10m rate=1r/s;`
`server {
location /v1/otp/request {
limit_req zone=otpzone burst=5 nodelay;
proxy_pass http://app_server;
}
}`
This configuration creates a memory zone (otpzone) to track requests based on the client’s IP address ($binary_remote_addr). It sets a base rate of 1 request per second. The `burst=5` parameter allows for a short queue of 5 requests to handle natural traffic spikes, while `nodelay` ensures those queued requests are not delayed but rather processed immediately up to the burst limit, after which `503` errors are returned, providing a strict ceiling.
What Undercode Say:
- The Architecture of Trust is Fragile. This case proves that a single misconfigured endpoint can dismantle the entire multi-factor authentication process, reverting it to a single, weak factor (knowledge of a phone number/email).
- Testing Must Be Continuous and Assumption-Free. Do not assume your cloud provider or WAF has rate limiting enabled by default. This vulnerability is a classic example of a missing or misapplied control that can only be caught through rigorous, automated adversarial testing.
- The technical simplicity of this bypass is what makes it so dangerous. It didn’t require a complex memory corruption bug; it was a logic flaw in the application’s defense posture. This shifts the responsibility squarely onto developers and DevOps to properly implement and test security controls. The future of application security hinges on “shifting left” and integrating these tests into the CI/CD pipeline, ensuring every API endpoint is tested for such misconfigurations before it ever reaches production. Relying on perimeter security alone is a proven failure.
Prediction:
This specific vulnerability pattern will see a dramatic rise in exploitation by automated bots, leading to widespread account takeover (ATO) campaigns across numerous platforms. We predict a short-term surge in SMS phishing (smishing) attacks that leverage this technique to bombard victims with legitimate-looking OTPs from real services, creating confusion and increasing the success rate of social engineering. In response, the industry will move towards standardized, hardened authentication APIs and greater adoption of phishing-resistant MFA like FIDO2/WebAuthn, which are inherently immune to OTP flooding attacks.
