Nvidia CMP 170HX Unlock: How a Five-Year-Old Mining GPU Became the Hottest AI Hardware of 2026 + Video

By /

Listen to this Post

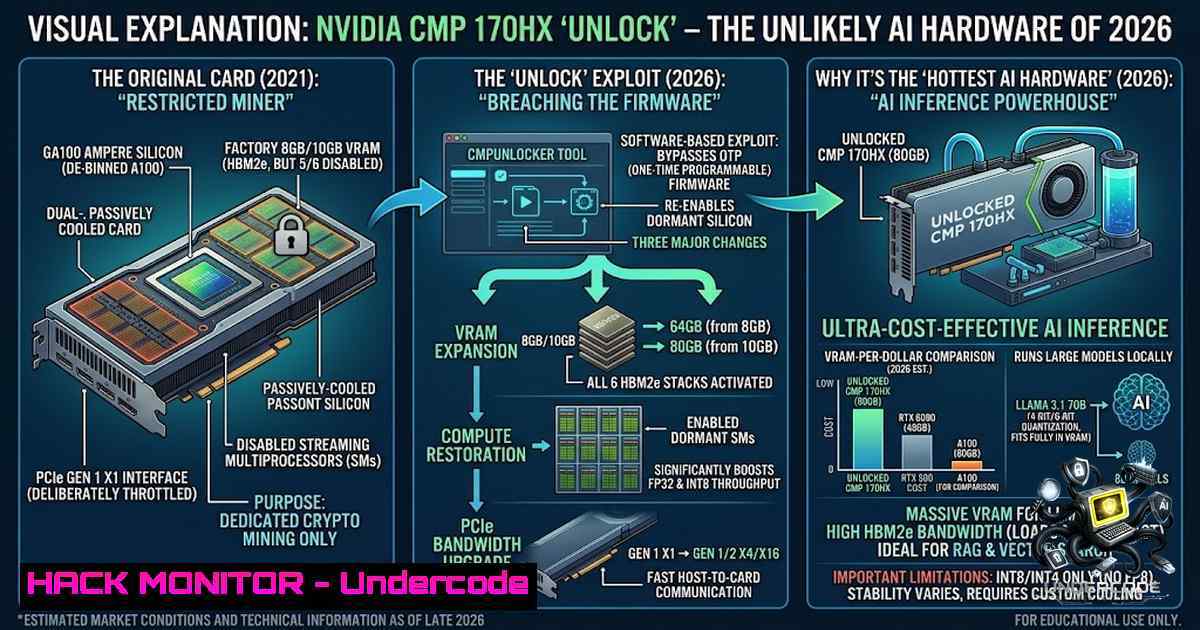

Featured Image

Introduction

In a remarkable turn of events that has sent shockwaves through both the cryptocurrency mining and artificial intelligence hardware communities, security researchers and modders have successfully cracked Nvidia’s firmware locks on the CMP 170HX—a five-year-old Cryptocurrency Mining Processor that was deliberately hobbled at the factory. The CMPUnlocker tool, now available as open-source software on GitHub, restores the GPU’s true hardware capabilities by exploiting a vulnerability in the Falcon BootROM’s signature verification process, effectively transforming a $250 mining castoff into a 64GB–80GB VRAM behemoth capable of running large language models and other AI workloads. This development represents one of the most significant hardware “jailbreaks” in recent memory, with secondary market prices for these cards skyrocketing from $100–$200 to over $2,000 literally overnight.

Learning Objectives & Secrets

  • Objective 1: Understand the Falcon BootROM Exploit — The CMPUnlocker tool exploits a vulnerability in how the Falcon BootROM loads the `.fwsignature_ga100` ELF section into DMEM before verifying the signature. By replacing this section with a 63KB ROP (Return-Oriented Programming) chain, the exploit performs targeted BAR0 writes to open four Platform Lock Manager (PLM) registers—WPR_CFG, FBPA, WPR, and FEAT. This is the critical “secret”: all four PLM registers must be opened simultaneously for the GSP-RM to correctly recognize the full memory geometry.

  • Objective 2 Secret Tip: Memory Profile Selection — Not all CMP 170HX cards are created equal. The 8GB variants (using Hynix HBM2e memory, Device ID 0x20C2) unlock reliably to 64GB, while 10GB variants (using Samsung memory) can theoretically reach 80GB but often suffer from stability issues. For maximum stability, security researchers recommend targeting 40GB on 10GB cards using the `CMPUNLOCKER_TARGET=unlocked_40gb` flag rather than pushing for the full 80GB unlock.

  • Objective 3 Secret Tip: Persistence and Cold Reboots — The unlock is applied at the kernel module level, not just as a runtime patch. The installer compiles and installs patched `nvidia-open` kernel modules that survive reboots. However, a cold reboot (full power-off, not just a soft restart) is absolutely required for the memory geometry changes to take effect. Additionally, Secure Boot must be disabled since the patched modules are unsigned.

You Should Know

  1. Understanding the GA100 Silicon: What Nvidia Actually Locked Away

The CMP 170HX is built on the same GA100 silicon as Nvidia’s flagship A100 datacenter GPU—a chip manufactured using TSMC’s 7nm process with 54 billion transistors. However, Nvidia deliberately crippled these mining cards through multiple layers of restrictions:

  • Memory Geometry Lock: The card physically contains five HBM2e memory stacks, each rated at 16GB (for a total of 80GB on 10GB variants). Nvidia’s factory strap limits each stack to just 2GB through OTP (One-Time Programmable) fuses and firmware-enforced register locks. The unlock modifies the FBPA_CFG1 register (0x009A0204) from its factory value to 0x02779000 for 64GB geometry on 8GB cards.

  • Compute Throttling: The GPU’s Streaming Multiprocessors (SMs) were throttled through SS0 (0x0082381C) and SS1 (0x00823820) registers that limited FMA/IMLA throughput. The exploit writes 0x88888888 and 0x00000008 respectively to remove these artificial caps.

  • PCIe Limitation: The card’s PCIe interface was restricted to Gen1 speeds; the unlock restores Gen2 x4 operation through software. Physical modification (capacitor mod) is required to achieve Gen3 or Gen4 speeds.

  • Missing Display Output: Unlike consumer GPUs, the CMP 170HX has no display outputs and is headless by design. This makes it suitable only for compute workloads, not desktop use.

2. Step-by-Step CMPUnlocker Installation Guide

The following procedure applies the unlock on Linux systems (x86-64) with root access. All commands must be executed with `sudo` or as root.

Prerequisites:

 Install required packages (Ubuntu/Debian example)
sudo apt update
sudo apt install -y linux-headers-$(uname -r) python3 python3-pip git build-essential
sudo pip3 install pyyaml

Install the nvidia-open driver (version 580.x or 610.43.0x)
sudo apt install -y nvidia-driver-580-open nvidia-utils-580 libnvidia-compute-580
 Verify driver installation
nvidia-smi

Step 1: Clone the CMPUnlocker Repository

git clone https://github.com/amoghmunikote/cmpunlocker.git
cd cmpunlocker

Step 2: Run the Installation

 For 8GB cards → 64GB unlock (most stable)
sudo ./install.sh --profile=8gb

For 10GB cards → 40GB unlock (safer, recommended)
sudo ./install.sh --profile=10gb

Alternative using environment variable (d3dx9 version)
sudo CMPUNLOCKER_TARGET=unlocked_40gb ./install.sh  40GB (safer)
sudo CMPUNLOCKER_TARGET=unlocked_80gb ./install.sh  80GB (full capacity)

The installer performs the following operations automatically:

  1. Validates root access and identifies the GPU (Device ID 0x20C2 for 8GB cards)

2. Downloads the matching `open-gpu-kernel-modules` source code

  1. Applies six kernel patches from the original exploit author
  2. Compiles and installs patched `nvidia.ko` and `nvidia-drm.ko` modules to `/lib/modules/$(uname -r)/`
    5. Configures a systemd daemon for persistence across reboots

6. Updates initramfs with the patched modules

Step 3: Cold Reboot (Critical!)

 Full power off, not just reboot
sudo shutdown -h now
 Then power on manually

Step 4: Verification

 Check that VRAM capacity has increased
nvidia-smi --query-gpu=memory.total --format=csv,noheader
 Expected output: 65536 MiB (64GB) or 40960 MiB (40GB)

Check that SM clock cap is removed
nvidia-smi --query-gpu=clocks.max.sm --format=csv,noheader

Monitor the unlock daemon
journalctl -u cmpunlocker -f

Detailed GPU information
nvidia-smi -a

Uninstall (if needed):

sudo ./uninstall.sh --yes
 Then perform a cold reboot

3. Falcon BootROM Exploit: Technical Deep Dive

The vulnerability that makes this unlock possible resides in Nvidia’s Falcon BootROM—a microcontroller that initializes the GPU before the main operating system loads. Here’s how the exploit works at a technical level:

  1. The Signature Bug: The Falcon BootROM loads the `.fwsignature_ga100` ELF section content into DMEM (Data Memory) before verifying the cryptographic signature. This creates a window of opportunity where malformed content can be executed.

  2. ROP Chain Injection: The exploit replaces the legitimate signature section with a 63KB ROP (Return-Oriented Programming) chain. This chain is carefully crafted to perform specific memory-mapped I/O (MMIO) operations.

  3. PLM Register Opening: The ROP chain executes a single BAR0 write of `0xFFFFFFFF` to each of the four critical PLM registers:
    – `FEAT_PLM (0x00823804)` = 0xFFFFFFFF
    – `FBPA_PLM (0x009A0148)` = 0xFFFFFFFF
    – `WPR_PLM (0x001FA7C4)` = 0xFFFFFFFF
    – `WPR_CFG (0x001FA7CC)` = 0xFFFFF0FF

  4. GSP-RM Initialization: With all four PLM registers opened, the GSP-RM (GPU System Processor – Runtime Manager) can now correctly initialize the memory controller with the full HBM2e geometry.

  5. Driver-Level Patching: The six kernel patches embedded in the driver:

– Weaken the WPR2 check (warning instead of error)
– Open PLM registers via Booter_Load before GSP-RM boot
– Write SS0/SS1/CFG1/LMR register values per device
– Patch `fb_length` in `GspStaticConfigInfo` to reflect the full memory size

4. Performance Benchmarks and Real-World AI Workloads

The unlocked CMP 170HX delivers impressive performance for its price point, though with important caveats:

  • Memory Bandwidth: The HBM2e memory operates at approximately 1,493 GB/s bandwidth, though actual performance varies by silicon quality and can drop to 700-800 GB/s on less stable units.

  • Compute Performance: With full SM compute throughput restored, the card delivers approximately 48 TOPS (INT8). However, it only supports INT8 data formats—no FP8, FP6, or FP4 support like modern AI accelerators.

  • AI Model Testing: Community members have successfully run DeepSeek-V4 models on 4x CMP 170HX setups achieving ~98 tokens/second decode and ~5300 tokens/second prefill. The cards work with vLLM and other inference frameworks, though PCIe Gen2 x4 bandwidth (approximately 2GB/s) can become a bottleneck for multi-GPU setups.

  • CUDA Compatibility: The unlock restores full CUDA functionality, allowing the cards to run standard AI frameworks. The GA100 architecture (compute capability 8.0) supports most modern PyTorch and TensorFlow operations.

5. Security Implications and Attack Surface Analysis

From a cybersecurity perspective, the CMPUnlocker exploit raises several important considerations:

  • Supply Chain Risk: The exploit demonstrates that hardware-level restrictions enforced through firmware can be bypassed if the underlying BootROM contains vulnerabilities. This has implications for other Nvidia products and the broader GPU ecosystem.

  • Driver Modification Risks: Installing patched kernel modules introduces significant security risks:

  • Disabling Secure Boot removes a critical system integrity protection
  • Patched modules are unsigned and could contain malicious code

  • The installation requires root access, giving the tool complete system control

  • Potential for Malware: While the current CMPUnlocker is open-source and community-audited, the same techniques could be repurposed for malicious driver-level rootkits or firmware implants. Security teams should treat any system with patched GPU drivers as potentially compromised.

  • Nvidia Response Unknown: It remains unclear whether Nvidia will issue driver updates to block this unlock or patch the BootROM vulnerability in future products. Organizations relying on these cards for production AI workloads should consider the long-term support implications.

  1. Market Dynamics: From E-Waste to Premium AI Hardware

The CMPUnlocker has triggered a dramatic market transformation:

  • Price Explosion: Cards that sold for $100–$200 on secondary markets are now listed at $1,200–$2,000 on eBay. In China, prices jumped from 300–500 RMB to over 6,000 RMB average, with some “pre-unlocked” 80GB versions reaching 10,000 RMB.

  • Bulk Buying: Mysterious buyers are reportedly purchasing entire lots of 80+ cards at a time, spending upwards of 100,000 RMB per batch.

  • Hardware Lottery: Not every card successfully unlocks. The cards use lower-bin GA100 dies and some HBM2e stacks may be defective or subpar—exactly why they were originally relegated to mining cards. Reported stable results are often 32GB–40GB rather than the theoretical maximum.

  • Thermal Challenges: The original passive cooling solution may be inadequate for full-power GA100 operation. Users report significant heat generation after unlocking, potentially requiring aftermarket cooling solutions.

  1. Step-by-Step AI Model Deployment on Unlocked CMP 170HX

Once the unlock is complete, here’s how to deploy AI models:

Step 1: Verify CUDA Installation

 Check CUDA version
nvcc --version
 Verify GPU is visible to CUDA
python3 -c "import torch; print(torch.cuda.is_available()); print(torch.cuda.device_count())"

Step 2: Install AI Framework (PyTorch Example)

pip3 install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu118

Step 3: Run a Model (Llama 2 7B Example)

from transformers import AutoTokenizer, AutoModelForCausalLM
import torch

model_name = "meta-llama/Llama-2-7b-chat-hf"
tokenizer = AutoTokenizer.from_pretrained(model_name)
model = AutoModelForCausalLM.from_pretrained(
model_name,
torch_dtype=torch.float16,
device_map="auto"
)

The model should load onto the CMP 170HX
print(f"Model loaded on: {model.device}")

Step 4: Monitor GPU Utilization

 Real-time monitoring
watch -1 1 nvidia-smi

Log GPU metrics
nvidia-smi --query-gpu=utilization.gpu,memory.used,temperature.gpu --format=csv -l 5

What Undercode Say

  • Key Takeaway 1: The CMPUnlocker exploit represents a watershed moment in GPU hardware security—it demonstrates that firmware-enforced restrictions can be bypassed through BootROM vulnerabilities, raising questions about Nvidia’s hardware security architecture across its entire product line. The fact that five-year-old mining cards can now compete with modern AI accelerators on memory capacity, if not compute efficiency, highlights the artificial nature of many hardware segmentation strategies.

  • Key Takeaway 2: The secondary market frenzy surrounding these cards serves as a cautionary tale about hardware speculation and the risks of treating GPU unlocks as guaranteed upgrades. With stability varying wildly between individual units, users are essentially buying lottery tickets—some cards will unlock to full 64GB or 80GB with stable operation, while others will crash, overheat, or fail to unlock at all. The 8GB Hynix variants appear significantly more reliable than the 10GB Samsung versions, making them the safer bet despite lower theoretical maximum capacity.

Analysis: This development sits at the intersection of hardware security, AI infrastructure economics, and the growing demand for affordable AI compute. The unlock effectively democratizes access to large-memory GPUs, potentially enabling researchers and small teams to run models that previously required expensive A100 or H100 hardware. However, the security implications cannot be overstated—systems running these patched drivers are inherently less secure, and organizations should treat them as experimental rather than production-ready infrastructure. Nvidia faces a strategic dilemma: aggressively patch the vulnerability and alienate a growing community of AI enthusiasts, or leave the exploit unpatched and potentially undermine confidence in their broader hardware security posture. For now, the CMP 170HX has been given a second life, but whether that life is sustainable depends on community support, thermal management solutions, and Nvidia’s response.

Prediction

  • +1 The CMPUnlocker will accelerate the development of open-source AI infrastructure by making high-memory GPUs accessible to researchers, students, and small startups who cannot afford datacenter-grade hardware. This could lead to more diverse AI research and faster innovation in model optimization techniques.

  • +1 Secondary market prices will stabilize around $500–$800 as more cards are unlocked and the community develops better stability testing and thermal management solutions, making these cards a viable budget option for AI inference workloads.

  • -1 Nvidia is likely to release driver updates that block the unlock or introduce new firmware restrictions, potentially rendering unlocked cards non-functional or unstable with future software updates—creating a “cat and mouse” dynamic similar to console jailbreaking.

  • -1 The security risks associated with running patched kernel modules and disabled Secure Boot make these cards unsuitable for production environments, government systems, or any infrastructure handling sensitive data. Organizations adopting them for cost savings may face significant compliance and security audit challenges.

  • -1 The thermal and power demands of fully unlocked GA100 silicon will lead to premature hardware failures, particularly on cards with inferior cooling solutions or defective memory stacks. Many buyers may find their expensive “deal” becomes e-waste within months.
