Introduction:

As digital transformation accelerates across power grids, manufacturing plants, defense networks, and transportation systems, the convergence of IT and operational technology (OT) has created an expanding attack surface that traditional firewalls simply cannot secure. Data diodes—hardware-enforced unidirectional gateways that physically prevent any return traffic—have emerged as the gold standard for protecting mission-critical infrastructure. With the global data diode market projected to reach USD 502 million by 2035 at an 11.60% CAGR, organizations are rapidly adopting these devices to enable secure OT-to-IT data flows for AI-driven analytics, predictive maintenance, and regulatory compliance while maintaining absolute network isolation.

Learning Objectives:

Understand the fundamental architecture of hardware-enforced data diodes and how they differ from software-based firewalls in protecting OT environments
Master practical deployment strategies, including Linux iptables simulation, configuration steps, and integration with SCADA/ICS networks
Learn to leverage data diodes for AI-driven predictive maintenance, secure log forwarding, and compliance with frameworks like NIST SP 800-82 and ISA/IEC 62443

You Should Know:

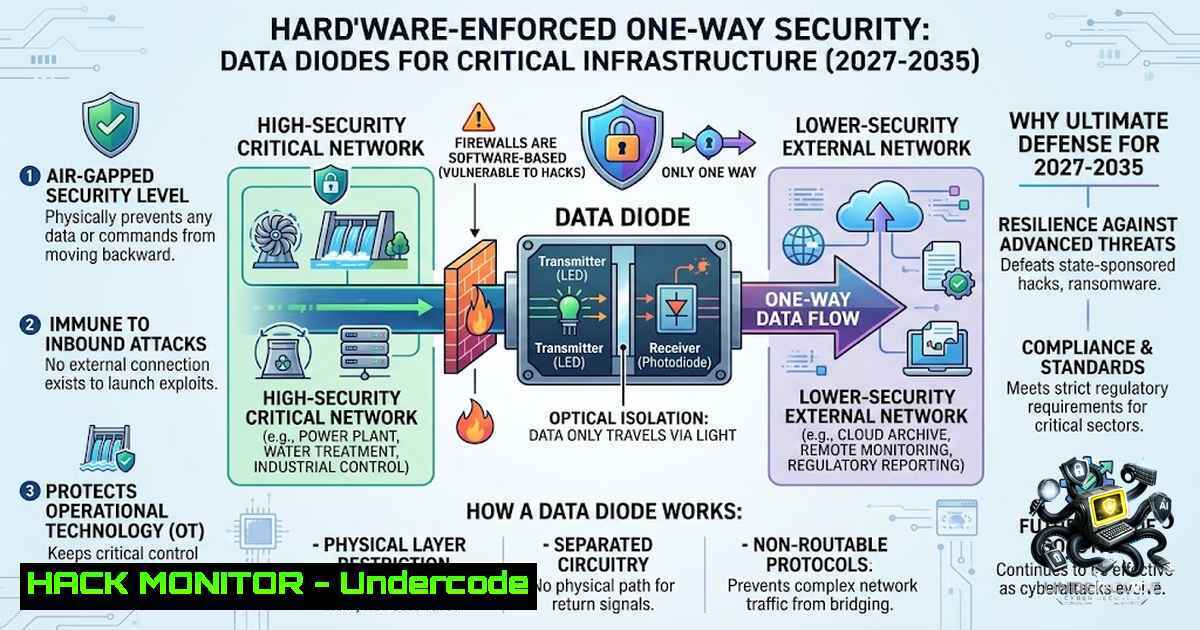

Core Architecture: How Hardware-Enforced Unidirectional Flow Eliminates the Attack Surface

A data diode is a network security device that physically enforces one-way data transfer between two network segments. Unlike firewalls that filter traffic based on rules but still permit bidirectional communication, a data diode contains hardware—typically a fiber-optic link with a transmitter on one side and a receiver on the other—that makes reverse traffic physically impossible. The National Institute of Standards and Technology (NIST) defines a data diode as “a network appliance or device that allows data to travel only in one direction,” also referred to as a unidirectional gateway or deterministic one-way boundary device.

This physical separation provides the strongest possible isolation for OT networks. As one security expert noted, “By implementing a DataDiode, information can securely travel from OT to IT without creating any pathway back in”. Traditional DMZ architectures and firewalls still must allow certain packets through, creating potential exploitation vectors. A data diode, by contrast, blocks all inbound data flows—there are no inbound packets to inspect because none are ever delivered.

Step‑by‑step guide: Simulating a software-based data diode using Linux iptables

While true hardware data diodes provide physical enforcement, network administrators can simulate unidirectional flow for testing and lab environments using strict firewall rules:

 Configure iptables to create a one-way data flow (OUTPUT allowed, INPUT dropped)
iptables -A OUTPUT -o eth1 -j ACCEPT
iptables -A INPUT -i eth1 -j DROP

Make the rules persistent across reboots
sudo iptables-save > /etc/iptables/rules.v4

This configuration ensures the system can send data out through interface `eth1` but cannot receive any data through that same interface. The `OUTPUT` chain rule permits all outgoing packets; the `INPUT` chain rule explicitly drops all incoming packets, creating a one-way communication path. For more granular control, block reverse traffic to specific destinations:

 Block reverse traffic to a specific monitored IP
iptables -A OUTPUT -d <destination_IP> -j DROP

Alternatively, using `nftables`:

nft add rule ip filter output ip daddr <monitored_IP> counter drop

For Windows environments, administrators can configure static ARP entries to manage unidirectional links:

arp -s <dest_ip_addr> <mac_addr>

Deployment in OT/ICS Environments: From SCADA to Cloud Analytics

Industrial control systems (ICS) and SCADA networks are prime targets for cyberattacks. Data diodes enable organizations to export real-time process data from SCADA and DCS networks to corporate IT or cloud analytics platforms while making it physically impossible for any command, malware, or ransomware to flow back.

The deployment architecture typically involves placing the data diode at the boundary between the OT and IT networks. On the OT side, data is collected from sensors, historians, OPC servers, and control systems. The diode transmits this data unidirectionally to the IT side, where it is published to replica servers, SIEM systems, or cloud-based analytics platforms.

Step‑by‑step guide: Implementing a data diode for AI-driven predictive maintenance

Drawing from real-world implementations in power plants and critical infrastructure:

Identify critical operational data from OT systems that need to be analyzed for predictive maintenance—turbine vibrations, temperature readings, pressure sensors, and equipment status logs.
Install the data diode at the boundary between the OT and IT networks, ensuring it connects to relevant data collection points such as OPC UA servers, historians, or MQTT brokers.
Configure protocol adaptation: Standard industrial protocols like OPC UA and MQTT are built around two-way messaging and cannot function directly across a diode. Use a tunnel/mirror approach where the source protocol is encapsulated within a unidirectional transport that can pass through the diode.

 Example: Using socat to tunnel UDP data across a unidirectional link
 On the sending side (OT network)
socat UDP4-RECVFROM:12345,fork TCP4:receiver:12345

On the receiving side (IT network)
socat TCP4-LISTEN:12345,fork UDP4-SENDTO:destination:12345

Integrate AI analytics to analyze incoming data for patterns, anomalies, and potential maintenance issues.
Regularly monitor and audit the data diode and IT systems to ensure continuous security and compliance with industry regulations such as NERC CIP, NIST SP 800-82, and ISA/IEC 62443.

Benefits realized: OT systems remain completely isolated from external threats; AI-driven insights optimize operational parameters; predictive maintenance reduces unplanned downtime by 20-30%; and secure data transfer ensures regulatory compliance.

Market Dynamics: Drivers, Players, and the 2027–2035 Outlook

The data diode market is experiencing accelerated growth driven by several converging factors:

Increasing cyberattacks targeting critical infrastructure: Ransomware attacks on pipelines, water treatment facilities, and power grids have demonstrated that traditional security measures are insufficient.
Regulatory requirements: NIST SP 800-82 Revision 3 details how unidirectional gateways fit into layered defense approaches for high-risk environments. NERC CIP mandates strict data isolation practices for the energy sector.
Industrial IoT and smart manufacturing: The deployment of IIoT devices and automation environments requires secure data transfer from OT to IT.
Zero-trust security strategies: Organizations are expanding investment in zero-trust architectures, with data diodes providing the ultimate “never trust, always verify” enforcement.

Major market players include Owl Cyber Defense (offering up to 100 Gbps throughput with sub-2ms latency), Waterfall Security Solutions (pioneering Unidirectional Gateways since 2007), Fox-IT (achieving CC EAL7+ certification), BAE Systems, Siemens, Schneider Electric, Honeywell, Belden Inc. (Hirschmann Rail Data Diode), and ST Engineering.

Step‑by‑step guide: Configuring a commercial data diode (Owl Talon reference)

Modern data diodes like the Owl Talon platform feature web-based interfaces for rapid configuration:

Hardware installation: Install the data diode card(s) in PCIe slots on separate host servers. For the Owl V7 system, two purpose-built network interface cards (one send, one receive) are connected via a fiber optic cable.
Network configuration: Connect the source network to the send card and the destination network to the receive card. The hardware physically prevents any signal from traveling back.
Protocol selection: Configure supported protocols including TCP, UDP (unicast, multicast, broadcast), NTP, Syslog, SMTP, SNMP Traps, File Transfer (RFTS), OPC DA/AAE, and remote screen view.
Flow definition: Using the web interface, define data flows from source to destination, specifying data types, transfer rates, and scheduling.
Security hardening: Enable advanced security features including SELinux enforcement, STIG-compliant OS, BIOS password protection, and disk encryption.

4. Protocol Challenges and Mitigation Strategies

The one-way constraint of data diodes disrupts virtually every industrial communication protocol. OPC UA and MQTT require acknowledgments, subscriptions, and handshake exchanges that a true data diode blocks outright.

Solutions include:

OPC UA Pub/Sub model: Supports one-way transmission over UDP, though UDP offers no guarantees of delivery, ordering, or completeness.
Tunnel/mirror architecture: The source protocol is encapsulated within a unidirectional transport; on the receiving side, a mirrored instance reconstructs the original protocol’s semantics.
Unidirectional Gateways: Modern solutions like Waterfall’s platform combine one-way hardware with software that transparently gathers industrial data, sends it through the hardware, and publishes it to identical servers in external IT networks.

Step‑by‑step guide: Forwarding syslog across a data diode

Syslog is one of the most common data types transferred across data diodes for security monitoring:

On the OT (sending) side, configure syslog-1g or rsyslog to forward logs to the data diode’s send interface:

 /etc/rsyslog.conf
. @<data_diode_send_IP>:514

On the IT (receiving) side, configure the syslog server to listen on the receive interface:

 /etc/rsyslog.conf
$ModLoad imudp
$UDPServerRun 514

For Windows environments, add a relay between the Windows Server and the data diode. Add a rewrite rule to change the hostname to IP address before sending logs through the data diode.
Verify the one-way flow: Monitor that logs are received on the IT side but no return traffic is possible. Use `tcpdump` to confirm:

tcpdump -i eth1 -1

5. Compliance and Regulatory Framework

Data diodes are explicitly recommended by multiple regulatory and standards bodies:

NIST SP 800-82 Revision 3 (Guide to OT Security) details how unidirectional gateways fit into layered defense approaches for high-risk environments.
NIST SP 800-53 Revision 5 provides comprehensive controls for boundary protection (SC-7) and information flow enforcement (AC-4) that align with hardware-based one-way solutions.
CISA/ICS-CERT frequently endorses data diodes in recommended practices, highlighting their value in isolating critical networks.
NERC CIP mandates strict data isolation practices for the energy sector.
ISA/IEC 62443 standards reference unidirectional gateways as a key control for OT-IT segmentation.

Organizations deploying data diodes must also consider Common Criteria certifications. The Fox DataDiode holds CC EAL7+ certification, while Sentyron’s Ruggedized Edition achieves EAL7+ for demanding defense environments.

What Undercode Say:

Hardware enforcement is non-1egotiable for critical infrastructure – Software-only solutions can be bypassed or misconfigured. Data diodes provide physical, unbypassable separation that eliminates entire classes of attacks, from ransomware to command-and-control infiltration.
AI and data diodes are complementary, not competing – The rise of AI-driven predictive maintenance and threat intelligence actually drives data diode adoption. Organizations need secure OT-to-IT data flows to feed AI models without exposing control systems. The market’s 11.60% CAGR reflects this symbiotic relationship.

Analysis: The convergence of IT and OT is inevitable, but it must be managed with security as the foundational principle. Data diodes represent a paradigm shift from “detect and respond” to “prevent by design.” While the initial investment can be significant—with enterprise-grade solutions ranging from $20,000 to over $100,000—the cost of a single OT breach (averaging $4.5 million in industrial sectors) justifies the expenditure. The technology has evolved considerably from its 1980s origins, with modern solutions supporting 100 Gbps throughput, sub-2ms latency, and seamless integration with cloud analytics. However, organizations must avoid “questionable design compromises” such as using unencrypted protocols or deploying “bidirectional” data diodes that defeat the security purpose. Proper education on data diode fundamentals remains critical—many security managers misunderstand how these devices actually work.

Prediction:

+1 Data diodes will become a mandatory control for critical infrastructure operators globally by 2030, driven by regulatory mandates similar to NERC CIP and expanding to cover water, transportation, and healthcare sectors.

+1 AI-powered data diodes with built-in anomaly detection and quantum-resistant encryption will emerge as the next evolution, enabling real-time threat intelligence sharing while maintaining absolute network isolation.

+1 The market will consolidate around 5-8 major vendors offering integrated OT/IT security platforms, with data diodes becoming a standard feature in industrial network switches and routers rather than standalone appliances.

-1 Legacy OT systems that cannot support modern protocol adaptation layers will face increasing pressure to upgrade, creating a short-term gap between security requirements and operational feasibility.

-1 The complexity of deploying data diodes in brownfield environments—where bidirectional communication is deeply embedded in operational workflows—will lead to implementation failures and potential safety incidents if not properly managed.
