Introduction:

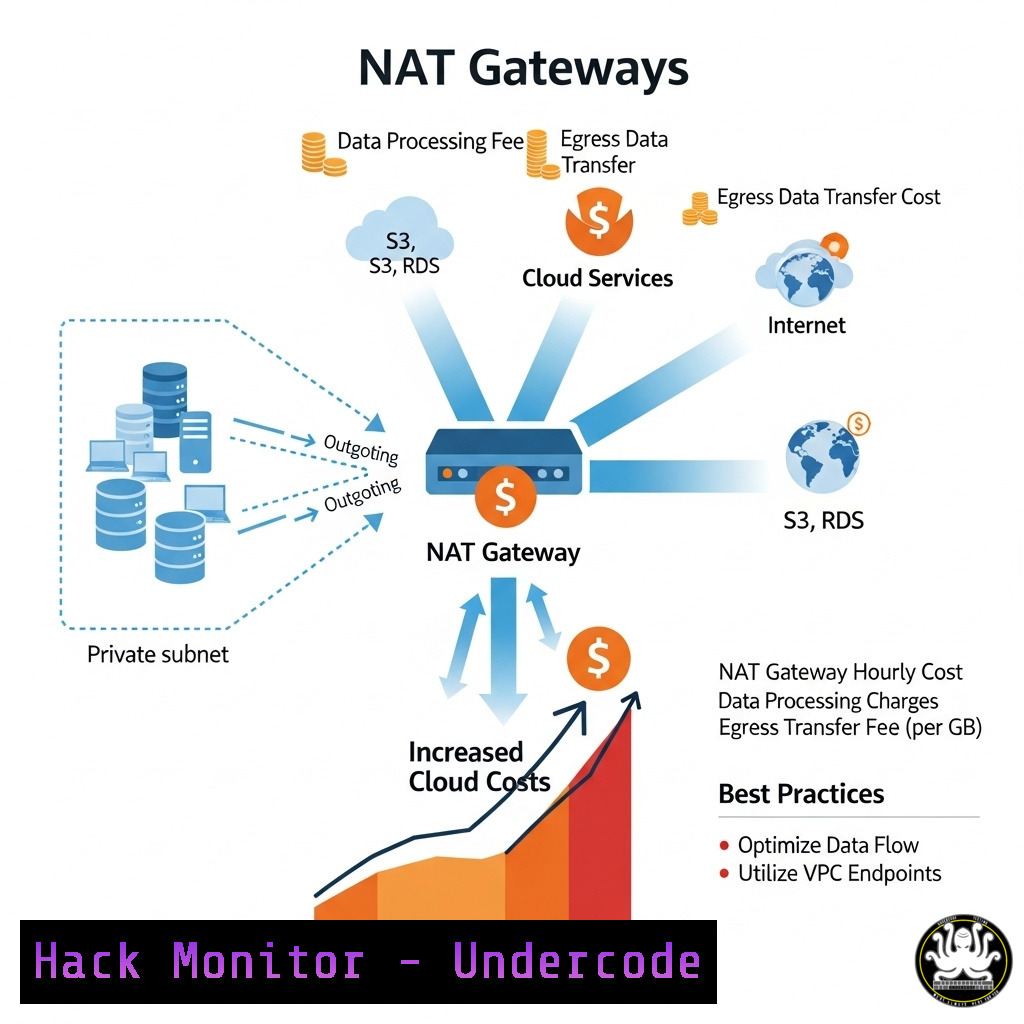

Network Address Translation (NAT) is a fundamental, non-negotiable component of modern cloud architecture, enabling private resources to communicate with the public internet. However, the cumulative cost of managed NAT gateways from major cloud providers can silently consume millions from an organization’s IT budget, representing a critical and often overlooked area for cost optimization and architectural review.
Learning Objectives:
- Understand the pricing models of major cloud NAT gateways and how data egress costs accumulate.
- Learn to identify and analyze NAT traffic within your own cloud environments using native monitoring tools.
- Implement strategic mitigations, including VPC endpoints, IPv6 adoption, and third-party solutions, to drastically reduce costs.
You Should Know:
1. Analyzing Your AWS NAT Gateway Bill
The first step to mitigation is measurement. AWS Cost Explorer and VPC Flow Logs are essential for pinpointing NAT-related expenses.
AWS CLI command to get estimated costs for NAT Gateway usage (replace dates)
aws ce get-cost-and-usage \
–time-period Start=2024-08-01,End=2024-08-21 \
–granularity MONTHLY \
–metrics “BlendedCost” “UsageQuantity” \
–group-by Type=DIMENSION,Key=SERVICE \
–filter ‘{“Dimensions”: {“Key”: “SERVICE”, “Values”: [“Amazon Virtual Private Cloud”]}}’
Query VPC Flow Logs (stored in CloudWatch or S3) to see traffic volume
This is a sample Athena query for Flow Logs in S3
SELECT
interface_id,
SUM(num_packets) as total_packets,
SUM(cast(bytes as double)) as total_bytes
FROM vpc_flow_logs
WHERE action = ‘ACCEPT’ AND protocol = ‘6’ — TCP traffic
AND dstport = 443 — Common egress port
AND date BETWEEN ‘2024-08-01’ AND ‘2024-08-21’
GROUP BY interface_id
ORDER BY total_bytes DESC;
Step-by-step guide:
This process helps you quantify the problem. The AWS Cost Explorer CLI command filters your bill to show costs associated with Amazon VPC, which includes NAT Gateway data processing fees. The Athena query, designed for VPC Flow Logs, identifies which specific resources are generating the most outbound traffic through the NAT, measured in bytes. This data is crucial for targeting your optimization efforts effectively.
- The Power of VPC Endpoints for AWS Services
VPC Endpoints (AWS PrivateLink) allow private communication between your VPC and supported AWS services without traversing the public internet, thereby bypassing the NAT gateway entirely.List available VPC Endpoint services in your region
aws ec2 describe-vpc-endpoint-services
Create a Gateway endpoint for S3 (which is free)
aws ec2 create-vpc-endpoint \
–vpc-id vpc-123abc \
–service-name com.amazonaws.us-east-1.s3 \
–route-table-ids rtb-123abc
Create an Interface endpoint for other services (e.g., EC2 API, with a small hourly fee)
aws ec2 create-vpc-endpoint \
–vpc-id vpc-123abc \
–service-name com.amazonaws.us-east-1.ec2 \
–subnet-id subnet-123abc \
–security-group-id sg-123abc
Step-by-step guide:
Gateway endpoints are primarily for S3 and DynamoDB and are free. Interface endpoints use AWS PrivateLink and incur a small hourly charge but eliminate data processing costs for services like EC2, SSM, and CloudWatch. After creating the endpoint, you must ensure your route tables are updated to direct traffic to the endpoint prefix list instead of the default internet gateway (0.0.0.0/0). This is one of the most effective ways to slash NAT costs.
3. Azure NAT Gateway Cost Diagnostics
In Azure, the diagnostic process is similar but uses native Azure tools like Cost Management and Network Watcher.
PowerShell: Get cost data for NAT Gateway resources
Get-AzConsumptionUsageDetail -StartDate 2024-08-01 -EndDate 2024-08-21 | `
Where-Object {$_.MeterCategory -eq “Nat Gateway”} | `
Select-Object InstanceName, PretaxCost | `
Sort-Object PretaxCost -Descending
Check flow logs for a Network Security Group (NSG)
First, ensure NSG flow logs are enabled to a Storage Account
$nsg = Get-AzNetworkSecurityGroup -Name “MyNSG” -ResourceGroupName “MyRG”
<
h2 style=”color: yellow;”>Set-AzNetworkWatcherConfigFlowLog `
-NetworkWatcher (Get-AzNetworkWatcher -Location $nsg.Location) `
-TargetResourceId $nsg.Id `
-StorageAccountId “/subscriptions/{sub-id}/resourceGroups/{rg}/providers/Microsoft.Storage/storageAccounts/{sa-name}” `
-EnableFlowLog $true
Step-by-step guide:
Use Azure PowerShell to query your consumption data, filtering specifically for the “Nat Gateway” meter category to see associated costs. To understand the traffic patterns, you must enable and analyze NSG Flow Logs using Azure Network Watcher. These logs will show the source of outbound traffic, helping you identify which workloads are the most expensive from a data egress perspective.
4. Leveraging GCP Cloud NAT Logging
Google Cloud Platform provides detailed logging for its Cloud NAT service, which is invaluable for analysis.
gcloud: List Cloud NAT gateways in a project
gcloud compute routers list
gcloud compute routers nats describe NAT_CONFIG_NAME –router=ROUTER_NAME –region=REGION
Review Stackdriver Logging for NAT events
In the Cloud Console, navigate to Logging and use a query like:
resource.type=”nat_gateway”
jsonPayload.event_subtype=”TRANSLATIONS”
Step-by-step guide:
After identifying your Cloud NAT gateways via the CLI, the primary analysis is done in the Google Cloud Console’s Logging section. By filtering for `nat_gateway` resource types and `TRANSLATIONS` events, you can audit the volume and sources of NAT translations. This data helps you make informed decisions about implementing Private Google Access or other mitigations.
5. The IPv6 Solution: Architecting for the Future
As highlighted in the source comments, the long-term strategic solution is migrating to IPv6, which eliminates the need for NAT for internet access due to its vast address space.
Linux: Test IPv6 connectivity from an EC2 instance
ping6 google.com
curl -6 http://ifconfig.co
AWS CLI: Assign an IPv6 CIDR block to your VPC
aws ec2 associate-vpc-cidr-block \
–vpc-id vpc-123abc \
–amazon-provided-ipv6-cidr-block
Assign IPv6 addresses to subnets and instances
aws ec2 modify-subnet-attribute \
–subnet-id subnet-123abc \
–assign-ipv6-address-on-creation
aws ec2 assign-ipv6-addresses –network-interface-id eni-123abc –ipv6-address-count 1
Step-by-step guide:
The transition to IPv6 is a architectural shift. Begin by enabling IPv6 on your VPC and subnets. Configure your instances to obtain IPv6 addresses. Crucially, you must update security groups and network ACLs to allow IPv6 traffic (::/0). Applications must be tested for IPv6 compatibility. While there is an upfront effort, the long-term benefit is a simplified network architecture devoid of NAT complexity and its associated costs.
6. Infrastructure as Code (IaC) for Cost Control
Automating your network architecture with IaC ensures NAT gateways are not provisioned by default and that cost-saving measures are baked in.
Terraform: Example creating a VPC with a NAT Gateway only if needed
resource “aws_nat_gateway” “this” {
count = var.enable_nat_gateway ? 1 : 0 Control with a variable
allocation_id = aws_eip.nat[bash].id
subnet_id = aws_subnet.public[bash].id
tags = {
Name = “main-nat”
}
}
Terraform: Creating S3 VPC Endpoint by default
resource “aws_vpc_endpoint” “s3” {
vpc_id = aws_vpc.main.id
service_name = “com.amazonaws.${var.region}.s3”
vpc_endpoint_type = “Gateway”
route_table_ids = [aws_route_table.private.id]
}
Step-by-step guide:
Using Terraform or CloudFormation, you can define your network infrastructure declaratively. Use conditional logic (e.g., a `enable_nat_gateway` variable) to ensure NAT gateways are explicit, reviewed choices, not defaults. Simultaneously, always include resources for VPC endpoints for services like S3 and SSM. This “infrastructure as code” approach enforces cost-conscious architecture from the very beginning.
7. Third-Party and Self-Hosted Alternatives
For extreme data processing needs, a self-managed NAT instance or a third-party solution like Megaport (from the source) can offer significant savings over managed gateway fees.
User Data script to configure a Linux instance as a NAT router
!/bin/bash
echo 1 > /proc/sys/net/ipv4/ip_forward
iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
iptables -A FORWARD -i eth0 -o eth1 -m state –state RELATED,ESTABLISHED -j ACCEPT
iptables -A FORWARD -i eth1 -o eth0 -j ACCEPT
Install and enable `iptables-persistent` to save rules
Step-by-step guide:
Launch a modest-sized EC2 instance in a public subnet. The user data script above enables IP forwarding and sets up `iptables` rules to masquerade traffic from a private subnet. This turns the instance into a NAT device. While this introduces management overhead (patching, high-availability setup), the cost savings on data processing can be enormous for high-throughput workloads, as you only pay for the instance and its data transfer, not per-GB processed.
What Undercode Say:
- The true cost of cloud-native services is often hidden in granular, per-operation fees like data processing, not just the flat hourly rate. NAT gateways are a prime example of this pricing model.
- Proactive architectural decisions, such as the default use of VPC endpoints and a strategy for IPv6 adoption, are no longer optional for serious cost control; they are mandatory best practices.
- The conversation in the source comments reveals a critical divide: the tactical use of vendor-specific fixes (VPC endpoints) versus the strategic, long-term evolution of network architecture (IPv6). A mature cloud strategy requires both.
The analysis of the source post and its comments highlights a pervasive issue in cloud operations: the abstraction of complexity often leads to an obfuscation of cost. While cloud providers offer managed services for convenience, their financial model is built on the cumulative consumption of these services. The expert comments provide the most valuable insight: the solution isn’t always another product (like Megaport), but often a deeper understanding and better utilization of existing native tools (VPC endpoints) and a commitment to modern standards (IPv6). This shift from reactive bill-shock to proactive architectural governance is the hallmark of a mature cloud practice.
Prediction:
The escalating cost of cloud data transit, exemplified by NAT gateway fees, will catalyze two major shifts. First, it will accelerate the enterprise adoption of IPv6 from a “nice-to-have” future project to an urgent cost-saving mandate, finally breaking the dependency on NAT. Second, it will fuel the growth of the FinOps industry, pushing it beyond mere reporting and into the realm of AI-driven autonomous optimization, where systems will automatically reconfigure network architecture in real-time to minimize costs based on current traffic patterns.
