Introduction:
In the complex landscape of cybersecurity, formal models provide the foundational theories that shape real-world access control systems. While many are familiar with models like Bell-LaPadula, the Clark-Wilson model offers a more practical framework for enforcing integrity in commercial environments, directly addressing critical concepts like Separation of Duty (SoD). Understanding its principles is essential for any security professional designing or auditing secure systems.
Learning Objectives:
- Understand the core components and purpose of the Clark-Wilson model.
- Differentiate Clark-Wilson from other formal security models like Bell-LaPadula and Biba.
- Learn how to implement and audit Separation of Duty controls in both Linux and Windows environments.
You Should Know:
1. Core Components of the Clark-Wilson Model

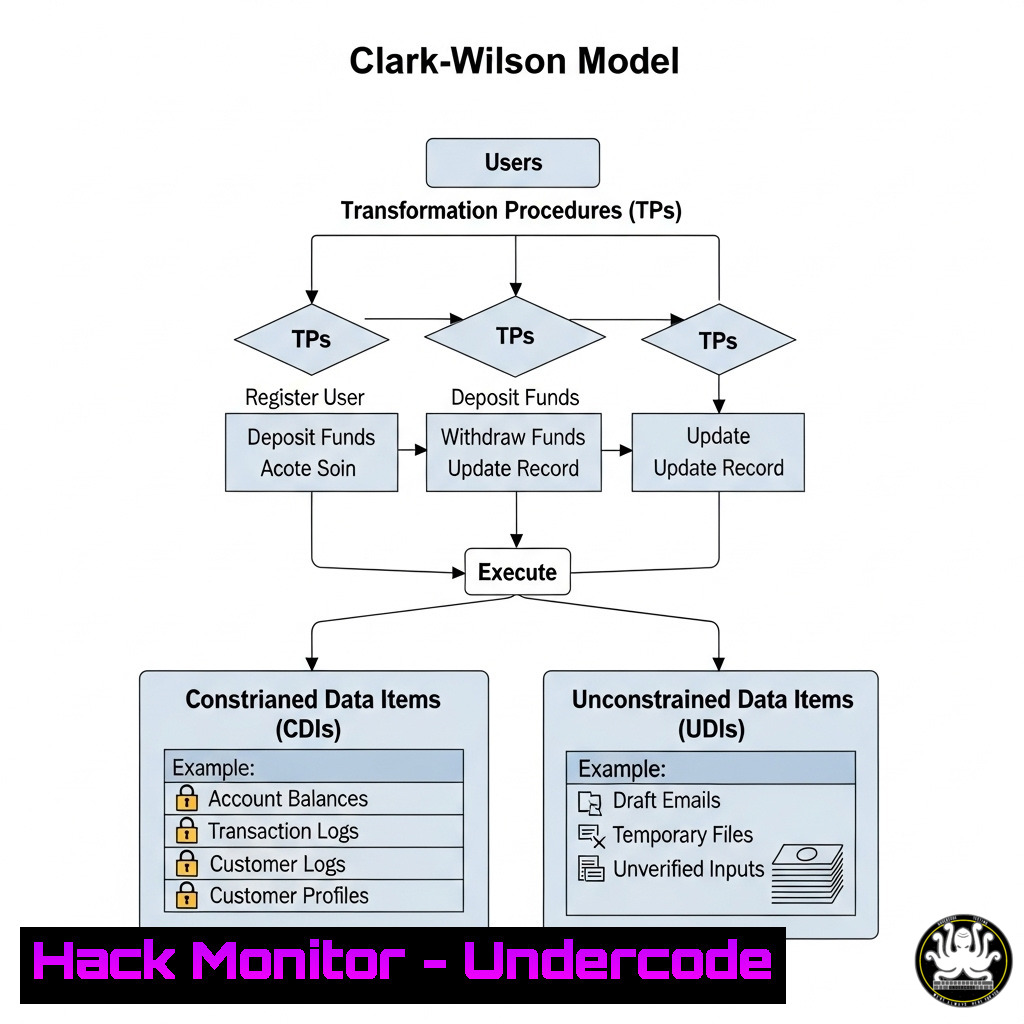

The model is built on Constrained Data Items (CDIs), Unconstrained Data Items (UDIs), Transformation Procedures (TPs), and Integrity Verification Procedures (IVPs). Its core mandate is to ensure data integrity by preventing unauthorized users from making changes and ensuring authorized users make only valid changes.
Audit Command (Linux): `grep -i “sudo” /etc/group` & `sudo auditctl -l | grep “sudo”`
Step-by-step guide: These commands help audit who has elevated privileges. The first lists all groups with sudo access. The second, if auditd is configured, lists active audit rules monitoring sudo usage. This is crucial for ensuring that the assignment of powerful roles (a TP) is properly constrained and audited, a key Clark-Wilson concept.
2. Implementing Separation of Duty (SoD) in Linux
SoD is a cornerstone of Clark-Wilson, ensuring no single individual can complete a critical task alone. In Linux, this is enforced through careful user and permission management.
Configuration Snippet: `/etc/sudoers.d/finance_policy`
`%app_deploy ALL=(ALL) /usr/bin/systemctl restart payment_app`
`%app_audit ALL=(ALL) /usr/bin/less /var/log/payment_app.log`
`%app_admin ALL=(ALL) NOPASSWD: ALL`
Step-by-step guide: This sudoers file snippet creates three distinct groups: deployers, auditors, and admins. A deployer can restart the application but cannot view logs. An auditor can read logs but cannot change the application state. This technically enforces SoD for a critical business process, a direct application of Clark-Wilson.
3. Enforcing SoD in Windows Active Directory
Windows environments use Active Directory and Group Policy to enforce similar separation of duty requirements.
PowerShell Command: `Get-ADUser -Identity “jdoe” -Properties MemberOf | Select-Object -ExpandProperty MemberOf`
Step-by-step guide: This PowerShell cmdlet retrieves all group memberships for a user (jdoe). Auditing these memberships is critical to ensure a user is not a member of two groups that would violate SoD, such as “CheckSigners” and “AccountReconcilers.” Regular audits of these memberships are the Integrity Verification Procedure (IVP).
4. File Integrity Checking as an IVP
Clark-Wilson requires Integrity Verification Procedures to ensure CDIs remain in a valid state. File integrity monitoring is a practical implementation.
Linux Command: `sudo aide –check`
Step-by-step guide: AIDE (Advanced Intrusion Detection Environment) creates a database of file hashes and attributes. Running `aide –check` scans the system and compares the current state against the known-good database. Any changes to critical system binaries (CDIs) are flagged, fulfilling the IVP requirement to prove integrity.
5. Windows Application Control via AppLocker
Controlling which transformation procedures (programs) can execute is key to enforcing a valid state. AppLocker acts as a powerful TP controller.
PowerShell Command: `Get-AppLockerPolicy -Effective -Xml | Format-List`
Step-by-step guide: This command retrieves the currently effective AppLocker policy in XML format. Analyzing this policy shows which users are permitted to execute specific programs (TPs), preventing the execution of unverified or malicious software that could corrupt CDIs. Configuring these policies defines the set of allowed TPs.
6. Database-Level SoD Enforcement
Clark-Wilson is highly applicable to databases. SoD can be enforced through stored procedures (TPs) and permissions.
SQL Snippet:
GRANT EXECUTE ON PROCEDURE ProcessPayment TO 'payment_clerk'; GRANT EXECUTE ON PROCEDURE ApprovePayment TO 'payment_manager'; REVOKE ALL PRIVILEGES ON payments FROM 'payment_clerk'; REVOKE ALL PRIVILEGES ON payments FROM 'payment_manager';
Step-by-step guide: This SQL grants execute permissions on two separate procedures to two different roles. Crucially, both roles are denied direct table access. A clerk can only initiate a payment (TP), and a manager can only approve it (a different TP). Neither can perform both actions alone or modify data directly, enforcing SoD at the data layer.
7. Auditing for SoD Violations
Continuous auditing is necessary to verify that SoD controls remain effective over time.
Linux Audit Rule: `-a always,exit -F arch=b64 -S openat -S unlink -S execve -k critical_tps`
PowerShell Command: `Get-WinEvent -LogName “Security” -FilterXPath “[System[EventID=4663]]” | Where-Object {$_.Properties[bash].Value -eq “C:\Apps\PaymentProcessor.exe”}`
Step-by-step guide: The Linux audit rule logs specific system calls often used by transformation procedures. The PowerShell command queries the Windows Security log for specific file access events related to a critical application. Correlating these logs by user can reveal potential SoD violations where a single user is performing all steps of a critical process.
What Undercode Say:
- Integrity Over Secrecy: While models like Bell-LaPadula focus on confidentiality, Clark-Wilson’s primary contribution is its rigorous framework for enforcing data and system integrity, which is often more critical in business operations.
- Practical Application is Key: The theory is meaningless without technical enforcement. The real value comes from implementing these concepts through precise sudoers files, AppLocker policies, database permissions, and robust auditing.
- The Clark-Wilson model isn’t just an academic exercise; it’s a blueprint for building resilient systems. Its emphasis on well-defined transactions (TPs) and continuous validation (IVPs) aligns perfectly with modern DevSecOps and Zero Trust philosophies. Organizations that skip this foundational work are building on sand, relying on trust rather than verifiable control.
Prediction:
The principles enshrined in the Clark-Wilson model, particularly Separation of Duty and mandatory access control for integrity, will become increasingly automated and integrated into cloud-native security platforms. We will see the rise of AI-driven compliance engines that continuously analyze IAM roles, Kubernetes permissions, and CI/CD pipelines to proactively identify and remediate SoD violations and integrity threats in real-time, moving from periodic audits to continuous certification.
