Introduction:
Distributed Denial of Service (DDoS) attacks—particularly TCP SYN Floods—exploit the fundamental three-way handshake of TCP connections. By bombarding a target with SYN requests without completing the handshake, attackers exhaust server resources, rendering websites, applications, and entire network infrastructures unavailable to legitimate users.
Learning Objectives:
– Understand the mechanics of a TCP SYN Flood DDoS attack and its impact on server resources.
– Implement Linux and Windows commands to detect, monitor, and mitigate SYN flood attacks in real time.
– Configure firewall rules, rate limiting, and cloud-based DDoS protection services to harden network defenses.
You Should Know:

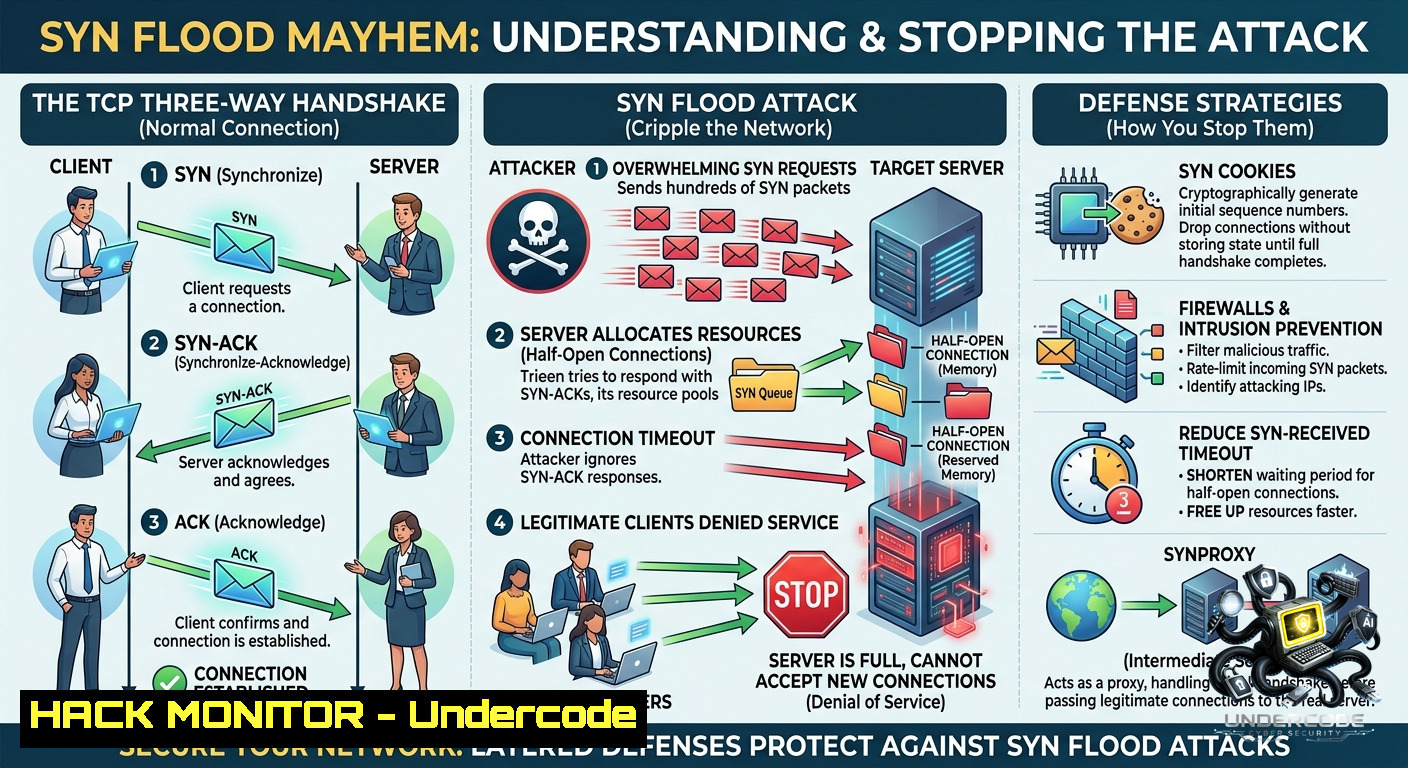

1. Anatomy of a SYN Flood: Abusing the TCP Three-Way Handshake
In a normal TCP connection, a client sends a SYN packet, the server replies with SYN-ACK, and the client responds with ACK. In a SYN flood, the attacker sends countless SYN packets but never sends the final ACK, leaving the server with half‑open connections that fill the backlog queue. Eventually, the server cannot accept new legitimate connections.
How to simulate (for lab testing only) and detect this attack:
Linux – Using hping3 to test your own environment:
Install hping3 sudo apt install hping3 -y Simulate a SYN flood from a single source (use with extreme caution in isolated lab) sudo hping3 -S -p 80 --flood --rand-source <target_IP>
Detection – Monitor half‑open connections on Linux:
View current TCP connections and states netstat -ant | grep SYN_RECV | wc -l Watch real‑time SYN_RECV spikes watch 'netstat -ant | grep SYN_RECV | wc -l'
Windows – Check SYN_RECV equivalent (SYN_RECEIVED):
PowerShell: Count half-open connections
Get-1etTCPConnection | Where-Object {$_.State -eq "SynReceived"} | Measure-Object | Select-Object -ExpandProperty Count
Continuous monitoring every 2 seconds
while($true) { (Get-1etTCPConnection | Where-Object State -eq 'SynReceived').Count; Start-Sleep 2 }
2. Firewall Hardening: SYN Cookies and Rate Limiting
SYN Cookies are a Linux kernel defense that eliminates the need to maintain half‑open connection queues. When the backlog fills, the server encodes connection information in the SYN-ACK sequence number, verifying only legitimate ACKs.
Enable SYN Cookies on Linux (persistent):
Check current status sysctl net.ipv4.tcp_syncookies Enable immediately sudo sysctl -w net.ipv4.tcp_syncookies=1 Make permanent by adding to /etc/sysctl.conf echo "net.ipv4.tcp_syncookies=1" | sudo tee -a /etc/sysctl.conf
Windows – Enable SYN attack protection (registry):
Set SYN attack threshold (default 100) Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters" -1ame "SynAttackProtect" -Value 2 -Type DWord Enable dynamic backlog Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters" -1ame "EnableDynamicBacklog" -Value 1 -Type DWord
Rate limiting with iptables (Linux): Limit SYN packets to 20 per second per source IP:
sudo iptables -A INPUT -p tcp --syn -m limit --limit 20/s --limit-burst 50 -j ACCEPT sudo iptables -A INPUT -p tcp --syn -j DROP
3. Advanced Traffic Filtering with BPF and Cloud Scrubbing
For production environments, use XDP (eXpress Data Path) or eBPF to drop malicious SYN packets before they reach the TCP stack. Cloud providers offer DDoS scrubbing centers that filter volumetric attacks.
Example eBPF‑based SYN flood filter (simplified skeleton using tc):
Install bpftool and kernel headers sudo apt install linux-tools-$(uname -r) linux-headers-$(uname -r) -y Load a simple XDP program (pre‑compiled from samples) sudo ip link set dev eth0 xdp obj /usr/lib/bpf/sample_xdp_kern.o sec .text
Cloud mitigation step‑by‑step:
1. Enable AWS Shield Advanced or Azure DDoS Protection on your VPC.
2. Configure a Web Application Firewall (WAF) with rate‑based rules (e.g., block IPs exceeding 1000 SYN requests per 5 seconds).
3. Route traffic through a load balancer (e.g., NGINX, HAProxy) with SYN proxy capability:
NGINX rate limiting for SYN (via limit_req)
http {
limit_req_zone $binary_remote_addr zone=synlimit:10m rate=10r/s;
server {
location / {
limit_req zone=synlimit burst=20 nodelay;
}
}
}
4. Monitoring and Alerting with AI‑Powered Anomaly Detection
Traditional threshold alerts fail against low‑and‑slow DDoS. Integrate AI models (isolation forests, LSTM autoencoders) on traffic telemetry to detect subtle SYN rate shifts.
Deploy an open‑source AI detector using Zeek + Python (scikit‑learn):
Install Zeek (formerly Bro) for flow logging sudo apt install zeek -y Log SYN packet features to CSV zeek -r capture.pcap -C -f "tcp and tcp[bash] & 2 != 0" extracts SYN flags
Python script to train an anomaly detector:
import pandas as pd
from sklearn.ensemble import IsolationForest
Load SYN flow data (packets per second, src_ip entropy)
data = pd.read_csv('syn_flows.csv')
model = IsolationForest(contamination=0.01)
model.fit(data[['syn_rate', 'unique_src_ips']])
anomalies = model.predict(current_window)
if anomalies == -1: print("ALERT: Possible SYN flood")
Windows Performance Monitor counters for baseline:
Add TCPv4 performance counters Get-Counter "\TCPv4\Segments Received/sec" Get-Counter "\TCPv4\Connection Failures" Create a data collector set for 24‑hour baseline
5. Building an Incident Response Playbook for DDoS
A layered response includes automated mitigation, ISP collaboration, and business continuity triggers.
Step‑by‑step response workflow:
1. Triage: Confirm DDoS using command line:
– Linux: `ss -s | grep TCP` (check retransmits and overflow)
– Windows: `netsh int tcp show global` (check dynamic backlog drop count)
2. Activate: Call cloud provider’s DDoS hotline (AWS Shield – +1‑844‑796‑7357) or enable BGP RTBH (Remotely Triggered Black Hole) with your ISP.
3. Mitigate: Deploy edge ACLs to block attack source prefixes:
Cisco‑style ACL (example for upstream router) access-list 100 deny tcp any any eq 80 syn access-list 100 permit ip any any
4. Communicate: Use status page (e.g., Statuspage, Cachet) to notify customers.
5. Post‑mortem: Extract pcap samples during attack using `tcpdump -i eth0 ‘tcp
& tcp-syn != 0' -G 300 -W 12 -w syn_flood_%Y%m%d_%H%M%S.pcap`
<h2 style="color: yellow;">6. Cloud Hardening: Auto‑Scaling and Anycast</h2>
Prevent resource exhaustion by coupling auto‑scaling groups with load balancers that drop malformed SYN packets.
Terraform snippet for AWS auto‑scaling under DDoS (using CPU threshold):
[bash]
resource "aws_autoscaling_policy" "ddos_protection" {
name = "ddos_cpu_scale_out"
scaling_adjustment = 2
adjustment_type = "ChangeInCapacity"
cooldown = 60
}
resource "aws_cloudwatch_metric_alarm" "high_syn_rate" {
alarm_name = "high-syn-traffic"
comparison_operator = "GreaterThanThreshold"
evaluation_periods = 2
metric_name = "SynPacketsIn"
namespace = "AWS/NetworkELB"
threshold = 100000
alarm_actions = [aws_autoscaling_policy.ddos_protection.arn]
}
Deploy on anycast network (e.g., Cloudflare, Akamai): Configure DNS with multiple A records pointing to anycast IPs, ensuring traffic is absorbed by the nearest scrubbing center.
7. Tabletop Exercise: Simulating a SYN Flood Response
Run a no‑cost simulation using open‑source tools to validate your playbook.
Simulation setup:
– Target: A test web server (e.g., Apache on Ubuntu).
– Attacker: Another VM running `hping3 –flood –rand-source -S
– Detection: Prometheus + Grafana with node_exporter monitoring TCP `syn_recv` metric.
– Response: Automated Ansible playbook that enables SYN cookies and triggers cloud WAF rule.
Ansible snippet for automated mitigation:
- name: Enable SYN cookies and rate limiting hosts: webservers tasks: - sysctl: name: net.ipv4.tcp_syncookies value: '1' sysctl_set: yes - iptables: chain: INPUT protocol: tcp syn: match limit: 20/sec burst: 50 jump: ACCEPT
What Undercode Say:
– Key Takeaway 1: DDoS is not just a network problem—it is a business continuity crisis. Organizations without a layered defense (on‑prem firewalls + cloud scrubbing + automated failover) face revenue loss and reputational damage even from moderate SYN floods.
– Key Takeaway 2: Proactive hardening using SYN cookies, rate limiting, and AI‑driven anomaly detection is far more effective than reactive “firefighting.” Companies should run bimonthly red‑team drills that simulate half‑open connection exhaustion to validate incident response playbooks.
Analysis (approx. 10 lines):
The post from Cyber Security Times highlights the persistent threat of SYN Flood DDoS attacks, which exploit a fundamental weakness in TCP state management. While many organizations invest in high‑bandwidth pipes, they overlook the resource exhaustion at the OS and application layers. Modern mitigation must blend kernel‑level defenses (SYN cookies, dynamic backlog) with edge services (Anycast, cloud scrubbing) and AI monitoring to catch low‑volume attacks that bypass threshold alerts. The provided Linux and Windows commands empower SOC analysts to detect spikes in `SYN_RECV` connections immediately, while iptables and eBPF offer lightweight filtering before the TCP stack is overwhelmed. Training courses should focus on building affordable lab environments with hping3, Zeek, and Isolation Forest models to simulate realistic attack scenarios. Ultimately, resilience comes from automation—using Ansible, Terraform, and cloud autoscaling to respond without human latency. Without these layered controls, a single well‑orchestrated SYN flood can bypass traditional firewalls and take down even cloud‑hosted applications.
Prediction:
– -1 Attackers will increasingly combine SYN floods with encrypted (TLS) session exhaustion, making state‑based mitigation more difficult and CPU‑intensive.
– +1 Widespread adoption of eBPF and XDP at the kernel level will enable sub‑millisecond packet drop for SYN floods, drastically reducing mitigation costs for cloud providers.
– -1 AI‑powered DDoS detection will drive an arms race: attackers will use generative AI to craft low‑and‑slow SYN patterns that mimic legitimate traffic spikes, evading standard anomaly models.
– +1 The growth of “DDoS‑resilient as a service” (e.g., Magic Transit, FastNet) will become a baseline requirement for enterprise insurance policies, forcing smaller firms to adopt inexpensive anycast protection.
