HTTP/2 BOMB DROPS: Single Client Can Crash NGINX, Apache, IIS In Seconds – Full Mitigation Guide Inside + Video

Introduction:

The HTTP/2 protocol, designed to accelerate web performance, has become the vector for a new class of denial-of-service attack. Security researchers have disclosed a critical vulnerability, codenamed “HTTP/2 Bomb” and tracked as CVE-2026-49975, which allows a single, unauthenticated client to remotely exhaust up to 32GB of server memory from a typical home internet connection in under 20 seconds. This flaw affects the default HTTP/2 configurations of major web servers, including NGINX, Apache HTTPD, Microsoft IIS, Envoy, and Cloudflare Pingora, leaving a massive swath of internet infrastructure vulnerable to immediate compromise.

Learning Objectives:

– Analyze the two-stage mechanics of the HTTP/2 Bomb, combining an HPACK bookkeeping bomb with a Slowloris-style flow-control hold.
– Execute specific configuration changes and upgrade commands for NGINX, Apache, and IIS to fully mitigate the CVE-2026-49975 vulnerability.
– Implement advanced defense-in-depth strategies using reverse proxies and PowerShell utilities to harden network perimeters against ongoing and future HTTP/2 memory exhaustion attacks.

You Should Know:

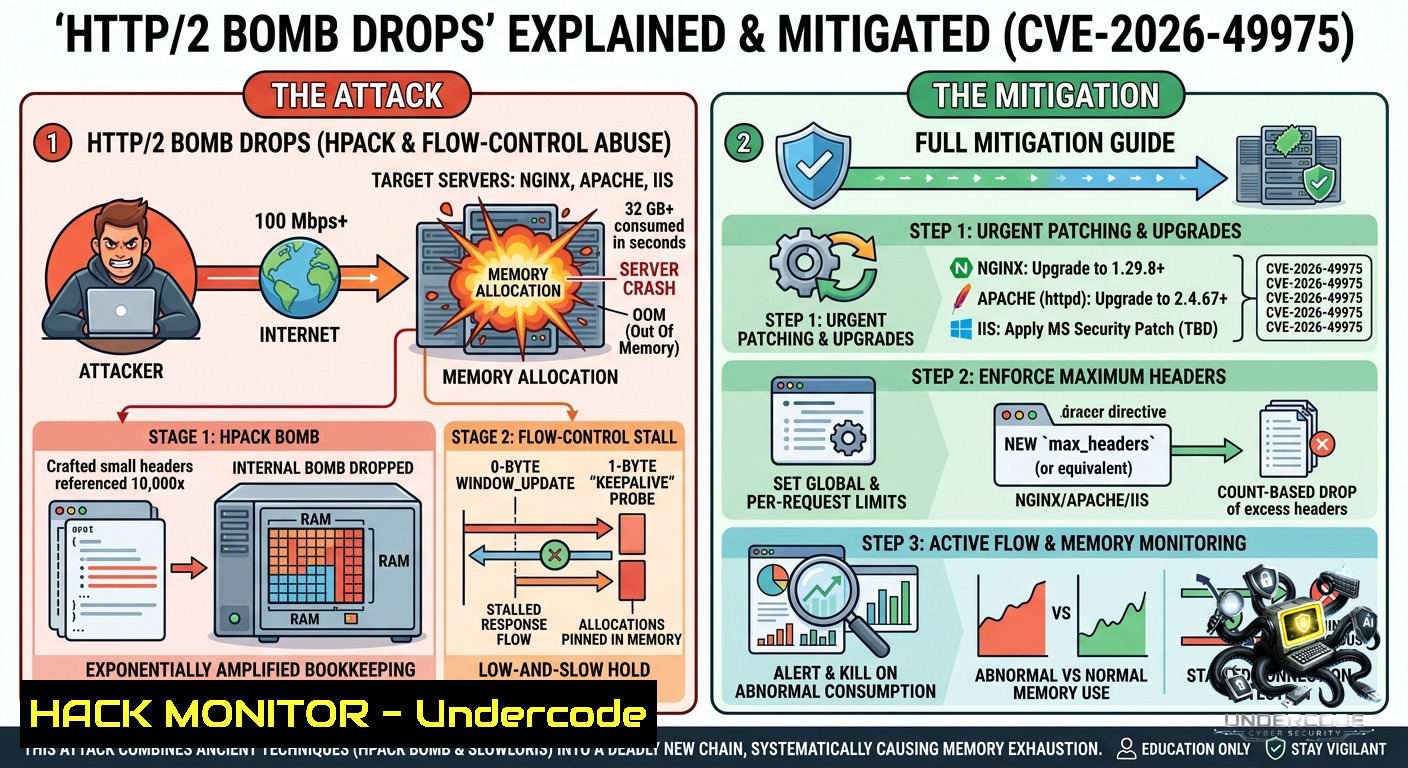

1. The Anatomy of a Perfect DoS Storm

At its core, the HTTP/2 Bomb is not a complex exploit but a devastatingly effective chain of two long-known weaknesses. The research firm Calif discovered this vector by using OpenAI’s Codex to analyze public codebases and patch notes, leading the AI to realize that two separate techniques could be chained to cripple enterprise servers. The attack unfolds in two phases:

Phase 1: The Bookkeeping Bomb (HPACK Compression). Unlike traditional compression bombs that send large amounts of data to trigger size limits, this variant sends a stream of extremely small, nearly empty headers. The server’s HPACK (HTTP/2 header compression) scheme is forced to allocate substantial memory for per-entry bookkeeping for each of these tiny headers. This results in a massive memory amplification ratio (up to 5,700:1 for some servers), where a client sending one byte of header data forces the server to allocate megabytes of memory.

Phase 2: The Flow-Control Hold (Slowloris-Style). After the server has allocated a massive amount of memory to handle the malformed request, the attacker sets its flow-control window to zero bytes. This standard HTTP/2 mechanism prevents the server from sending any response data back to the client. With no way to complete the request and no timeout trigger, the server is forced to hold onto all that allocated memory indefinitely, leading to near-instant, permanent resource exhaustion. A single attacker on a 100 Mbps connection can bring a vulnerable server to its knees.

2. Immediate Patch and Mitigation (Linux & Windows)

The most critical action for system administrators is to immediately apply vendor patches or emergency configuration changes to break the attack chain. The table below summarizes the current patch status and immediate stopgap measures for the affected servers.

| Server | Patched Version | Stopgap/Workaround |

| : | : | : |

Step-by-step Mitigation Commands:

For NGINX on Linux, upgrade to the patched version to gain the new `max_headers` protective directive:

 Add the official NGINX stable repository (adjust for your OS)
sudo apt update && sudo apt install curl gnupg2 ca-certificates lsb-release ubuntu-keyring
 Upgrade to version 1.29.8 or later
sudo apt install nginx=1.29.8-1~$(lsb_release -cs)
 Verify the upgrade
nginx -v

How to use it: After upgrading, NGINX’s new `max_headers` directive will automatically limit request headers to 1000 per request, starving the HTTP/2 Bomb of the necessary repetitions to trigger memory exhaustion. You can also disable HTTP/2 entirely by adding `http2 off;` to your server block in `/etc/nginx/nginx.conf`.

For Microsoft IIS on Windows Server 2025, where no vendor patch is yet available, disabling HTTP/2 at the kernel-level HTTP.SYS layer is the strongest defense. The open-source H2Shield PowerShell utility automates this process for home labs and small fleets.

 Run PowerShell 7 as Administrator, disable HTTP/2 via registry
New-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\HTTP\Parameters" -1ame "EnableHttp2Tls" -Value 0 -PropertyType DWord -Force
New-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\HTTP\Parameters" -1ame "EnableHttp2Cleartext" -Value 0 -PropertyType DWord -Force
 Reboot to apply changes
Restart-Computer

How to use it: This disables HTTP/2 support for all websites hosted on the IIS server. It is a temporary but effective mitigation until Microsoft releases an official security patch.

3. Building a Defense-in-Depth Perimeter

Given that the attack exploits fundamental design elements of HTTP/2, relying solely on host-based patches may not be sufficient. A robust defense-in-depth strategy uses a reverse proxy as a protective shield. HAProxy, for example, is architecturally safe from being overwhelmed by this exploit due to its strict memory constraints. You can use HAProxy to drop malicious clients at the network edge before the attack reaches your vulnerable web servers.

Step-by-step HAProxy Virtual Patching:

To configure HAProxy (v3.1.3 or later) to proactively drop malicious HTTP/2 Bomb traffic, add the following configuration to the `frontend` section responsible for terminating your TLS/HTTP/2 traffic.

frontend http2-ingress
bind :443 ssl crt /etc/ssl/certs/your-cert.pem alpn h2,http/1.1
mode http

 Detect clients that send a large number of very small headers
acl is_http2_bomb hdr_cnt(X-Custom-Crumb) gt 500
acl is_http2_bomb hdr_cnt(Cookie) gt 300

 Block and log offending clients
http-request deny deny_status 403 if is_http2_bomb { log-format "HTTP/2 Bomb attempt from %ci" }

default_backend web_servers

How to use it: This configuration counts the number of repeated `X-Custom-Crumb` or `Cookie` headers in an incoming request. The HTTP/2 Bomb often splits a single logical header into hundreds of tiny individual crumbs to bypass per-field limits. If the count exceeds a safe threshold (e.g., 500), HAProxy immediately denies the request with a 403 error, preventing the memory bomb from ever reaching your NGINX or Apache backend.

For more generic protection that doesn’t rely on specific header patterns, you can implement aggressive client timeouts:

 In the same frontend, add strict timeout configurations
timeout client 10s
timeout http-request 5s
timeout http-keep-alive 5s

These timeouts ensure that even if an attacker attempts the Slowloris-style hold, HAProxy will prematurely close the connection, freeing the server-side memory.

4. Auditing Your Environment with H2Shield

To inventory your Windows host’s attack surface, use the PowerShell-based H2Shield script. It lists every listening TCP/UDP endpoint, classifies external reachability, and disables HTTP/2 for IIS.

 Download and run H2Shield
git clone https://github.com/punksm4ck/h2shield.git
cd h2shield
.\H2Shield.ps1 -Action Audit

How to use it: This generates a report showing which services (e.g., IIS, Remote Desktop, SQL Server) are publicly reachable via HTTP/2. For systems that cannot be patched, H2Shield will offer to disable HTTP/2 at the HTTP.SYS layer.

5. Attack Amplification & Long-Term Protocol Impacts

The memory amplification factor varies across servers: Envoy amplifies by ~5,700:1, Apache by ~4,000:1, and NGINX by ~70:1. This means the same malicious request could generate gigabytes of server memory across different stacks. The vulnerability is particularly insidious because HTTP/2 is nearly universal, and the exploit uses valid, standard frame properties, bypassing many traditional security controls. Long-term, this will likely spur re-evaluation of HPACK design and push organizations to adopt HTTP/3 more aggressively.

What Undercode Say:

– Key Takeaway 1: The HTTP/2 Bomb is a masterclass in low-bandwidth, high-impact attacks. It leverages normal protocol behavior to cause a resource-based DoS, demonstrating that standard security tools focused on packet floods are often blind to application-layer memory bombs.
– Key Takeaway 2: The discovery method (by an AI reading public codebases) is arguably as significant as the flaw itself. It signals a future where AI systems autonomously discover zero-day vulnerabilities by analyzing open-source code, forcing a new paradigm in vulnerability research and disclosure.

This situation is a critical reminder that protocol-level security is not “solved.” For immediate safety, administrators should prioritize patching NGINX and Apache, disabling HTTP/2 on IIS, and deploying a reverse proxy as a protective buffer.

Prediction:

– -1 Immediate Exploitation Window: Over 880,000 websites remain vulnerable on default configurations. Publicly available PoC code will trigger automated scanning within 72 hours, leading to widespread DoS incidents before patches are universally applied.
– -1 Permanent Protocol Scars: This attack will erode trust in HTTP/2’s HPACK design. Future protocol versions (HTTP/3.1+) will likely incorporate mandatory per-request memory caps, breaking backward compatibility and creating a fragmented web ecosystem.
– +1 Rise of AI-Driven Security: The use of OpenAI’s Codex to discover this vulnerability will legitimize AI in offensive security research, leading to a new generation of both offensive and defensive automated tools that can analyze source code at scale for unknown threats.
