Introduction:
API rate limiting is a fundamental security control designed to prevent abuse, brute-force attacks, and resource exhaustion. However, when this defense relies solely on the client’s IP addressβa common implementationβit becomes vulnerable to evasion. By using AWS API Gateway to generate a pool of ephemeral IPs and routing traffic through a Burp Suite extension, an attacker can rotate their source address on every request, effectively nullifying IP-based restrictions and allowing unlimited access.
Learning Objectives:
– Configure the “IP Rotate” Burp Suite extension to route traffic through AWS API Gateway.
– Understand how to create an AWS IAM user with the necessary permissions for the extension to operate.
– Analyze the security implications of relying solely on IP-based rate limiting and explore effective mitigation strategies.
You Should Know:

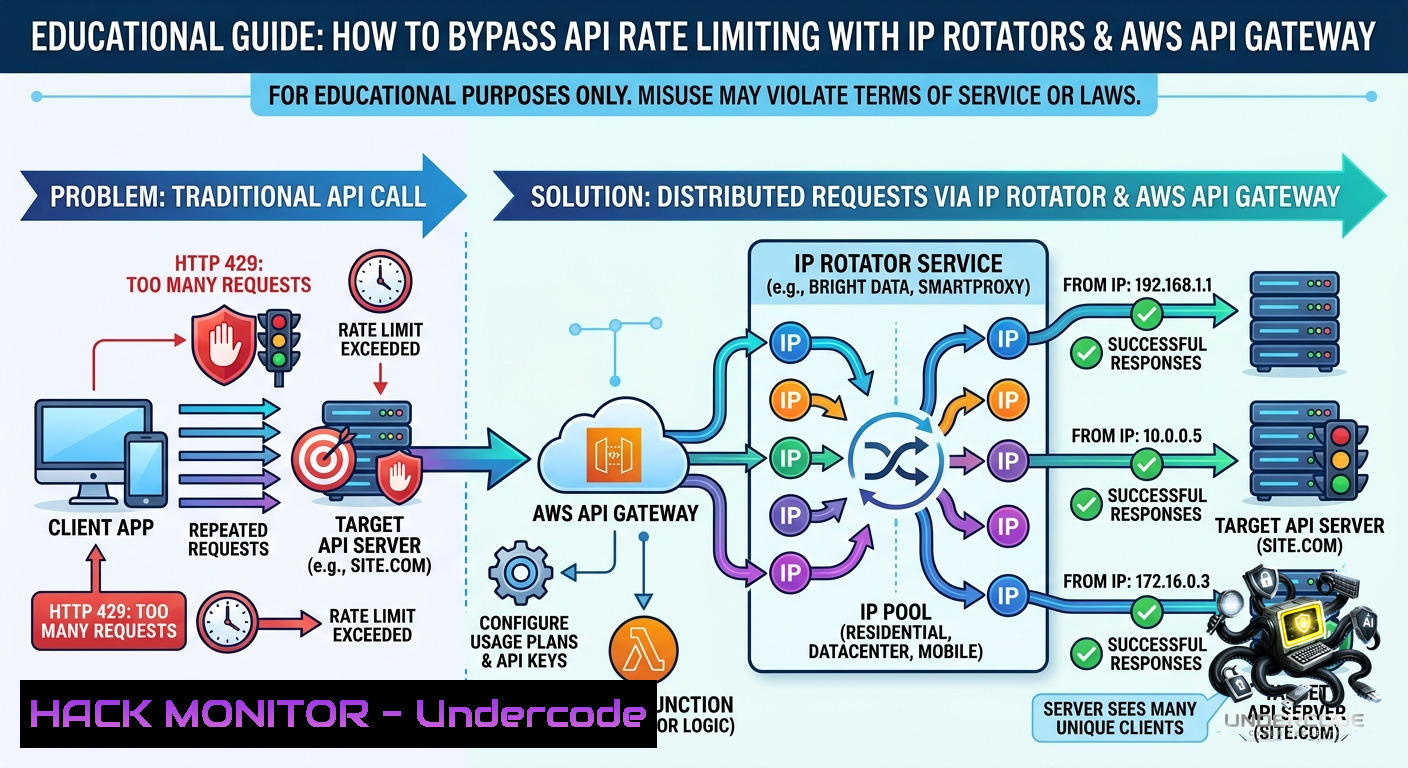

1. Understanding the Core Mechanics of IP Rotation
The core concept of this technique is to exploit the fact that AWS API Gateway services use a large, dynamic pool of IP addresses. By creating API Gateway instances across multiple AWS regions and configuring Burp Suite to route traffic through these endpoints, each HTTP request appears to originate from a different source IP address, effectively bypassing simple IP-based rate limits. This method is more effective than traditional proxy rotation because the IP pool is vast and managed by a reputable cloud provider, making it harder for blacklists to track and block.
StepβbyβStep Guide:
Prerequisites:
An active AWS account (the AWS Free Tier is sufficient for this).
Burp Suite Professional or Community Edition installed.
Jython standalone JAR file (for Python 2.7 support in Burp).
1. Setting up a Restricted IAM User in AWS:
To interact with the API Gateway service securely, you’ll need a dedicated AWS IAM user with limited permissions.
Log into the AWS Management Console and navigate to IAM > Users.
Click Create user. Name it descriptively, like `ip-rotate-svc`.
Under Set permissions, select Attach policies directly. Search for and select `AmazonAPIGatewayAdministrator`.
Click Next, review the settings, and Create user.
After creation, click View user, go to the Security credentials tab, and scroll to Access keys.
Click Create access key. For use case, select Other. Add a description for auditing (e.g., “Burp IP Rotate”) and click Create access key.
IMPORTANT: Immediately copy and store the Access Key ID and Secret Access Key in a secure location, as this is the only time they will be displayed.
2. Configuring Jython in Burp Suite:
The IP Rotate extension requires a Python environment to run.
In Burp Suite, go to the Extender tab.
Click on the Options sub-tab.
Under Python Environment, set the Location of Jython standalone JAR file to the file you downloaded.
3. Installing and Configuring the “IP Rotate” Extension:
In the Extender tab, click on the BApp Store sub-tab.
Search for “IP rotate” and select the extension by Rhino Security Labs. Click Install.
A new tab named IP Rotate will appear. Click on it to open the configuration interface.
In the AWS Account section, paste the Access Key ID and Secret Access Key you saved earlier.
Under Target, enter the domain of the host you want to test. For initial validation, you can use a service like `ifconfig.co` to view your apparent IP address.
Select HTTPS if your target uses TLS.
In the Regions section, select all the AWS regions you wish to use. The more regions selected, the larger the pool of IPs available for rotation.
Do not click “Enable” yet. First, test your configuration.
4. Testing the IP Rotation:
Send a request to `https://ifconfig.co` through Burp Suite, either in Repeater or by setting up a simple Intruder attack.
Observe the IP address in the response. It will likely be the same for multiple requests.
Return to the IP Rotate tab and click Enable. The extension will begin creating API Gateway endpoints in the selected regions, which may take a few seconds. Monitor the Output tab for any errors.
Now, send the same request again through Burp Suite. The response should show a different IP address. Repeat this several times to see the IP change.
Remember: When you are finished testing, click Disable in the IP Rotate tab to delete all created AWS resources and avoid incurring charges.
2. Further Exploitation: Advanced Automation with Python
While the Burp Suite extension is powerful for manual testing, you can automate large-scale requests using a Python library like `requests-ip-rotator`. This library is ideal for automated brute-forcing or web scraping tasks where you want to circumvent IP-based rate limiting from your own scripts. It works by creating and routing requests through a temporary AWS API Gateway, just like the Burp extension.
StepβbyβStep Guide:
Prerequisites:
Python 3.6 or later installed.
An AWS account with configured credentials (using `aws configure` command-line tool).
Python virtual environment (recommended).
1. Setting up the Python Environment and Library:
Open a terminal on Linux or a command prompt on Windows.
Create and activate a virtual environment (optional but recommended):
python -m venv ip_rotator_env source ip_rotator_env/bin/activate On Linux/macOS ip_rotator_env\Scripts\activate On Windows
Install the `requests-ip-rotator` library:
pip install requests-ip-rotator
2. Writing and Executing the Python Script:
Create a new Python script named `rotator_demo.py`.
Use the following code to demonstrate IP rotation:
import requests
from requests_ip_rotator import ApiGateway
URL of the target API endpoint (use a test service like ifconfig.co)
target_url = "https://ifconfig.co"
Part 1: Request without IP rotation
print(" Without IP Rotation ")
response = requests.get(target_url)
print(f"Request 1 IP: {response.text.strip()}")
response = requests.get(target_url)
print(f"Request 2 IP: {response.text.strip()}\n")
Part 2: Request with IP rotation via AWS API Gateway
Create an API Gateway endpoint set for the target domain
gateway = ApiGateway(target_url, regions=['us-east-1', 'eu-west-1', 'ap-southeast-1'])
Start the gateway (creates AWS resources, may take a few seconds)
gateway.start()
Now send requests; they will be routed through the gateways
print(" With IP Rotation ")
session = requests.Session()
session.mount(target_url, gateway)
for i in range(5):
response = session.get(target_url)
print(f"Request {i+1} IP: {response.text.strip()}")
IMPORTANT: Stop the gateway to delete AWS resources and avoid charges
gateway.shutdown()
Save and run the script from your terminal:
python rotator_demo.py
The script will first show that two consecutive requests come from the same IP address. Then, after initializing the API Gateway, it will show that each of the next five requests appears to come from a different IP address, demonstrating successful IP rotation.
3. Defensive Mitigations: Hardening API Rate Limiting
The technique described above exploits a fundamental weakness: relying on a single, spoofable identifier (the client IP address). To effectively defend against such bypass attempts, API security controls must be multi-layered and contextual.
StepβbyβStep Guide for Security Engineers:
Implement Composite Key Rate Limiting: Instead of just IP addresses, use a composite key like `IP:User-Agent` or `API_Key:Endpoint` for rate limit buckets. This makes it harder for an attacker to rotate away from a block.
Leverage Behavioral Analysis: Deploy API gateways with integrated Web Application Firewalls (WAF) like AWS WAF. Configure rate-based rules that aggregate requests by multiple parameters and analyze patterns like rapid-fire requests, which can indicate automated abuse even from multiple IPs.
Introduce Client-Side Challenges: For extremely sensitive endpoints (e.g., login), consider integrating a CAPTCHA challenge after a certain number of failures. This adds a significant cost to automating attacks at scale, regardless of IP rotation.
Enforce Strong API Key Security: Require API keys for all sensitive endpoints. Rate limit based on the API key itself, in addition to IP. If a key is compromised, it can be revoked. Combine this with strict key rotation policies.
Monitor for API Gateway Fingerprinting: AWS API Gateway endpoints often have identifiable behavior or TLS fingerprints. A sophisticated WAF or custom middleware can be configured to detect and block requests that originate from known cloud provider proxy services.
4. Alternative Manual Techniques: X-Forwarded-For Spoofing
A far simpler, though less reliable, method to bypass IP-based rate limiting involves spoofing the `X-Forwarded-For` (XFF) HTTP header. This technique is effective only if the target API is misconfigured to trust this header as the source of truth for the client’s IP address, which is often the case when an API is behind a reverse proxy that doesn’t override or validate it.
StepβbyβStep Guide:
Identify the Vulnerability: Send a test request to an API endpoint. In the request, add a header: `X-Forwarded-For: 1.2.3.4`. Observe the response. If subsequent requests from your real IP are not rate-limited after changing this value, the API is likely trusting it.
Automate with `curl` (Linux/macOS):
for i in {1..20}; do
FAKE_IP="100.100.${RANDOM}.${RANDOM}"
curl -H "X-Forwarded-For: $FAKE_IP" https://vulnerable-api.example.com/login
echo "Request $i with IP: $FAKE_IP"
sleep 0.1 Add a small delay
done
Automate with PowerShell (Windows):
1..20 | ForEach-Object {
$fakeIP = "100.100.$(Get-Random -Maximum 255).$(Get-Random -Maximum 255)"
$headers = @{'X-Forwarded-For' = $fakeIP}
Invoke-WebRequest -Uri "https://vulnerable-api.example.com/login" -Headers $headers
Write-Host "Request $_ with IP: $fakeIP"
Start-Sleep -Milliseconds 100
}
Note: This is a serious vulnerability. Defenders must ensure their API gateways and load balancers are configured to overwrite any incoming `X-Forwarded-For` header with the actual connecting client’s IP address before processing the request.
5. Cloud-Hardening for AWS API Gateway
For AWS users, it’s crucial to understand that API Gateway’s dynamic IP behavior can be a double-edged sword. While it’s a feature for high availability, it can be weaponized by attackers. To harden your own API Gateway against such abuse:
Enforce Usage Plans and API Keys: AWS API Gateway allows you to create usage plans and require API keys for access. This gives you a client identifier that is much harder for an attacker to rotate than an IP address.
Deploy AWS WAF on API Gateway: Attach an AWS WAF web ACL to your API Gateway stage. Create rate-based rules that, for example, block requests that exceed 2000 per 5-minute period from a single IP. While an attacker can rotate IPs, it’s a critical first line of defense.
Use AWS Shield Advanced: For production APIs, AWS Shield Advanced provides enhanced protection against volumetric DDoS attacks that may leverage IP rotation techniques.
What Undercode Say:
– Key Takeaway 1: Rate limiting is a critical security control, but it must be implemented thoughtfully. Basing it solely on an IP address is a known architectural antipattern and provides a false sense of security. A determined attacker with a modest cloud budget can trivially bypass this control.
– Key Takeaway 2: The core of this attack is neither sophisticated nor novel; it’s a clever misappropriation of a cloud feature (AWS API Gateway’s dynamic IP pool) for malicious purposes. This highlights a broader principle: the features that make cloud services scalable and resilient can also be weaponized to circumvent traditional security models. Red and Blue teams must both be aware of how cloud infrastructure can be repurposed in unexpected ways.
Prediction:
– -1 The Cat-and-Mouse Game Will Escalate to the Client Side: As server-side IP-based controls become obsolete, we will see a significant industry shift toward client-side and behavioral fingerprinting for anti-abuse. Techniques like TLS fingerprinting, browser canvas fingerprinting, and sophisticated behavioral analysis (mouse movements, typing cadence) will become standard for high-value APIs. Attackers, in turn, will invest in more sophisticated headless browsers and emulation frameworks to mimic human behavior, raising the cost of both offense and defense.
– +1 Increased Adoption of Composite Rate Limiting: The widespread knowledge of this IP rotation technique will force organizations to abandon simplistic rate limiting. We will see best-practice guidelines and compliance standards (like OWASP API Security Top 10) emphasize composite key limits (e.g., API key + endpoint + IP range) as a mandatory requirement, leading to more resilient and well-architected API security postures overall.
