Introduction:

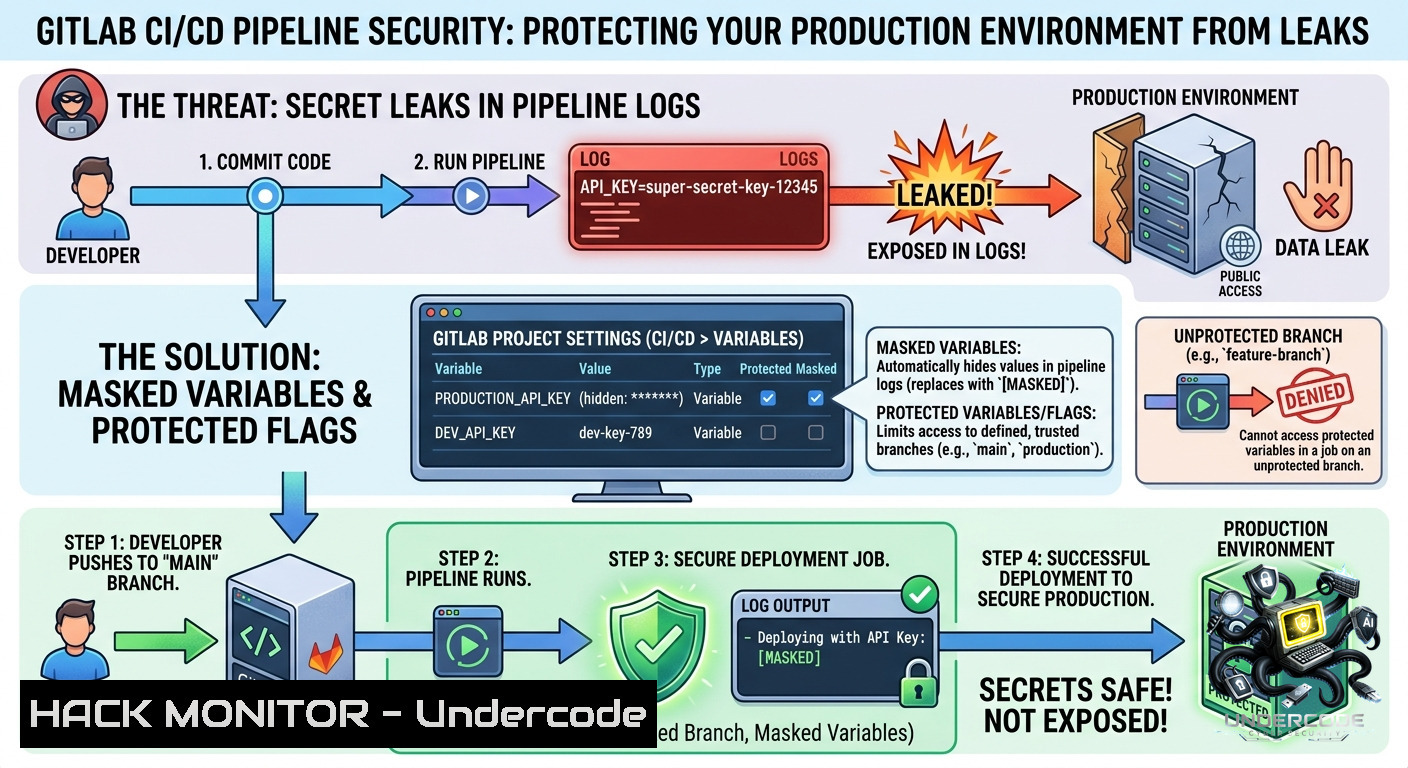

Continuous Integration and Continuous Deployment (CI/CD) pipelines are prime attack vectors for credential theft and unauthorized deployments. GitLab’s Secrets & Variables section, combined with conditional execution rules, offers critical controls to prevent secrets from appearing in job logs and restrict dangerous jobs to protected branches – transforming a risky pipeline into a production‑safe automation workflow.
Learning Objectives:
– Understand how to configure GitLab CI/CD variables with masking and protected flags to prevent credential exposure.
– Implement conditional execution rules using `rules`, `only/except`, and manual approvals for branch‑safe deployments.
– Apply Linux/Windows commands to verify, rotate, and audit secrets in CI/CD pipelines.
You Should Know:
1. Hardening Secrets: Masking, Protection, and Variable Scope
Masking automatically replaces any matched variable value in job logs with `
` – but only works for non‑sensitive‑looking values (e.g., API keys without special chars). Protected flags restrict a variable to pipelines running on protected branches or tags. <h2 style="color: yellow;">Step‑by‑step guide:</h2> 1. In GitLab project → Settings → CI/CD → Variables. 2. Add variable (e.g., `DB_PASSWORD=My$up3rS3cret`). Masking will fail if value contains `$`, spaces, or is too short (<8 chars). For unsupported characters, use file‑based variables: `DB_PASSWORD_FILE` pointing to a mounted secret. 3. Check Mask variable – GitLab displays a warning if masking impossible. 4. Check Protect variable – only available to protected branches (e.g., `main`, `prod`). 5. Use `echo "$SECRET"` in a job; the log will show `[bash]` instead of plaintext. <h2 style="color: yellow;">Linux/Windows verification commands (GitLab API):</h2> [bash] List all project variables (requires maintainer token) curl --header "PRIVATE-TOKEN: <your_token>" "https://gitlab.example.com/api/v4/projects/<project_id>/variables" Update a variable with masking and protection curl --request PUT --header "PRIVATE-TOKEN: <token>" \ "https://gitlab.example.com/api/v4/projects/<id>/variables/DB_PASSWORD" \ --form "value=newpass123" --form "masked=true" --form "protected=true"
2. Conditional Execution: Branch Rules and Manual Gates
Conditional execution prevents accidental deployments to production and ensures risky jobs only run under explicit approval. Use `rules` or `only/except` with branch names, variables, and `when: manual`.
Step‑by‑step guide (`.gitlab-ci.yml` snippet):
deploy_to_prod: stage: deploy script: ./deploy.sh rules: - if: $CI_COMMIT_BRANCH == "main" when: manual allow_failure: false - when: never security_scan: stage: test script: ./scan.sh rules: - if: $CI_MERGE_REQUEST_TARGET_BRANCH_NAME == "main" - if: $CI_COMMIT_BRANCH =~ /^release\/./ environment: name: staging
– `when: manual` requires a user to click the “play” button in GitLab UI.
– Combine with `protected` branches: only maintainers can run manual jobs.
– For Windows runners, use PowerShell: `Write-Host “Deploying to $env:CI_ENVIRONMENT_NAME”`
3. Using Protected Branches and Pipeline Security
Protected branches block force pushes, require merge request approvals, and restrict who can run pipelines on that branch. Always protect default and production branches.
Step‑by‑step guide:
1. Settings → Repository → Protected branches.
2. Select branch (e.g., `main`) → Protect.
3. Set Allowed to merge and Allowed to push to minimal roles (e.g., Maintainers).
4. For extra security, enable Code owner approval for sensitive files.
5. Verify protection via CLI: `git branch -r` and check GitLab API:
curl --header "PRIVATE-TOKEN: <token>" "https://gitlab.example.com/api/v4/projects/<id>/protected_branches"
4. Auditing Pipeline Logs for Secret Leakage
Even with masking, secrets can leak through `set -x` shell output, `env` commands, or printed arguments. Perform regular log audits.
Step‑by‑step guide to audit logs (Linux):
– Download pipeline logs using API:
curl --header "PRIVATE-TOKEN: <token>" "https://gitlab.example.com/api/v4/projects/<id>/jobs/<job_id>/trace" -o job.log grep -E "(PASSWORD|TOKEN|KEY|SECRET)" job.log
– Use GitLab’s Security Dashboard to detect accidental variable exposure.
– For Windows (PowerShell):
Invoke-WebRequest -Uri "https://gitlab.example.com/api/v4/projects/1/jobs/2/trace" -Headers @{"PRIVATE-TOKEN"="<token>"} -OutFile job.log
Select-String -Path job.log -Pattern "PASSWORD|TOKEN"
5. Integrating External Secret Managers (Vault, AWS Secrets Manager)
GitLab variables are convenient but limited. For dynamic, fine‑grained secrets, integrate HashiCorp Vault or cloud secret managers.
Step‑by‑step guide (GitLab + Vault via JWT):
1. Configure Vault with JWT auth backend pointing to GitLab’s OIDC.
2. In `.gitlab-ci.yml`, request a temporary Vault token:
secrets: DB_PASS: vault: "secret/data/db/prod:password" @vault-server API_KEY: vault: "aws/creds/gitlab:access_key"
3. GitLab automatically fetches secrets and injects them as masked variables.
4. For Windows runners, use `$env:DB_PASS`.
6. Manual Approval Gates for High‑Risk Deployments
Combine `when: manual` with `protected` environments to enforce two‑person rule for production.
Step‑by‑step guide:
deploy_prod: stage: deploy script: deploy.sh environment: name: production url: https://prod.example.com rules: - if: $CI_COMMIT_BRANCH == "main" when: manual needs: ["test", "build"] allow_failure: false
– Only users with Maintainer role on protected branch can trigger manual job.
– Add `resource_group: production` to serialize deployments.
What Undercode Say:
– Key Takeaway 1: Masking and protected flags are not “set‑and‑forget” – test each variable because special characters or short length break masking, exposing raw secrets.
– Key Takeaway 2: Conditional execution using `rules` with `when: manual` on protected branches is the most effective control to prevent rogue production deployments.
Analysis (10 lines):
The LinkedIn exchange highlights a real‑world oversight: many DevOps teams store secrets in CI/CD variables but ignore masking failures and branch protections. Attackers who compromise a developer’s token or exploit a merge request can dump job logs – unmasked tokens give direct access to cloud consoles. GitLab’s protected flags limit exposure, but they require that the target branch itself is protected; otherwise, any branch with a pipeline can read protected variables. The most robust approach combines: (1) file‑based secrets when masking fails, (2) audit logs for accidental `env` prints, and (3) external vaults for dynamic, short‑lived credentials. Manual approval gates add human review to high‑risk actions, reducing blast radius. Without these, a single pipeline run can leak database passwords, API keys, or SSH certificates. The key is shifting left – enforce these rules in `.gitlab-ci.yml` templates and branch protection defaults.
Prediction:
– -1 GitLab and similar CI/CD platforms will face increasing attacks targeting variable injection and job log extraction, pushing organizations toward ephemeral, just‑in‑time secrets (e.g., OIDC federation) and away from long‑lived static variables.
– +1 The adoption of protected branches + manual approvals will become a mandatory compliance check (SOC2, ISO 27001) for any pipeline that touches production, driving better automation around approval workflows.
– -1 Misconfigured “masked” variables that fail silently will continue to cause breaches until vendors enforce masking validation at variable creation time, not runtime.
