Introduction:

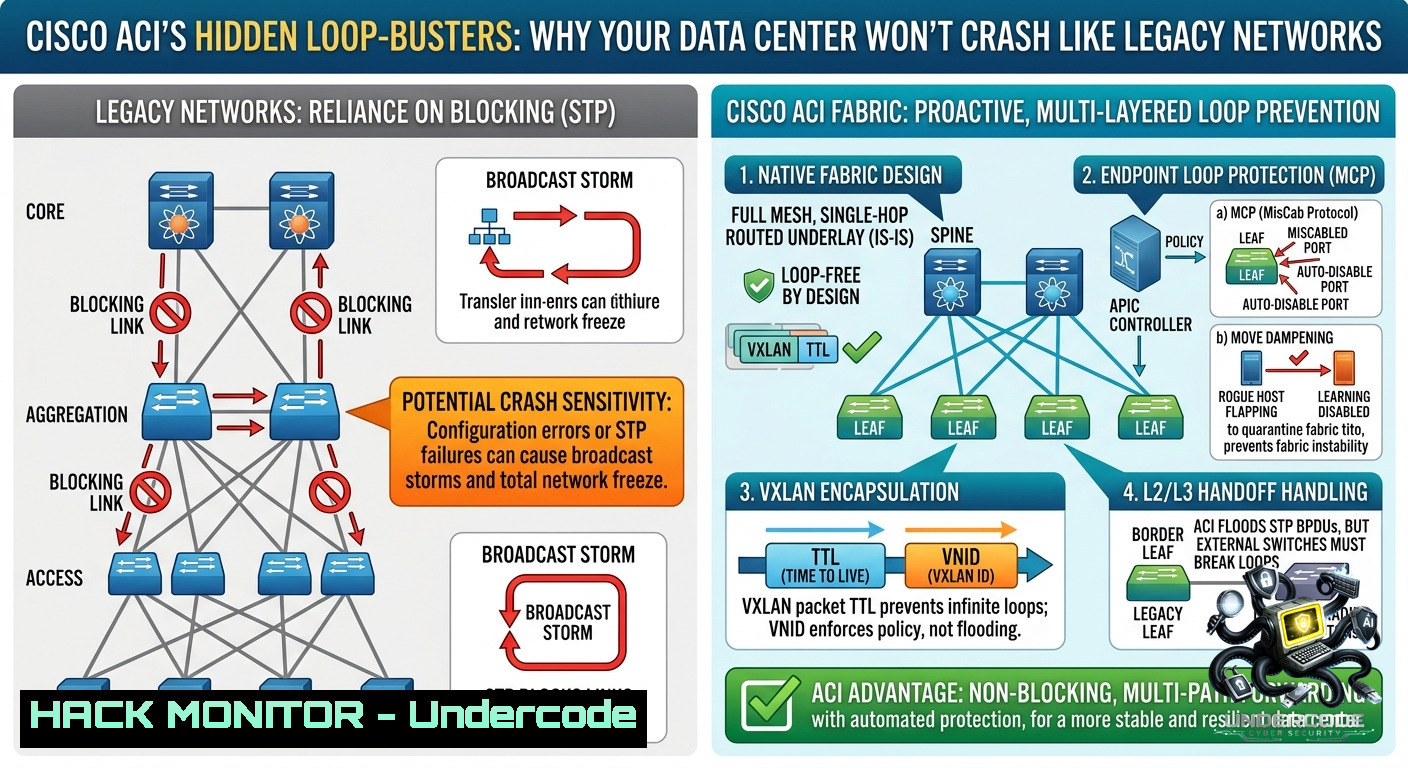

Modern spine-leaf architectures like Cisco ACI eliminate traditional Spanning Tree Protocol (STP) inside the fabric to enable active-active forwarding and higher bandwidth utilization. However, Layer 2 loops remain a real threat—introduced by misconfigured external devices, accidental cabling errors, or legacy switch connections. Instead of relying on slow, reactive STP, ACI deploys three specialized loop‑detection mechanisms (LLDP, MCP, and STP BPDU monitoring) that instantly isolate and shut down problematic ports, preserving data center stability and preventing broadcast storms.
Learning Objectives:
– Understand how LLDP, MCP, and STP‑based loop detection differ from traditional STP in ACI fabrics.
– Identify mis‑cabling and external loop scenarios using Cisco ACI CLI and APIC GUI diagnostics.
– Implement step‑by‑step verification and mitigation commands for each loop‑detection mechanism on Nexus switches and Linux/Windows hosts.
You Should Know:
1. LLDP Loop Detection – Spotting Your Own Reflection
LLDP (Link Layer Discovery Protocol) runs by default on most ACI leaf switches. When a leaf sends its own LLDP advertisement and later receives that same advertisement back on a different interface, it means a Layer 2 loop exists somewhere—often a patch cable connecting two ports on the same leaf or an unmanaged switch with a loop. ACI immediately error‑disables the offending interface.
Step‑by‑step guide for verification and simulation:
– On ACI leaf (NX‑OS style CLI via APIC or leaf console):
Check LLDP global status show lldp status View interfaces where LLDP has detected a loop (error‑disabled) show interface status | include err-disabled Manually verify LLDP neighbor information show lldp neighbors interface ethernet 1/1 Enable LLDP loop detection (default on, but confirm) configure terminal lldp loop-detection lldp loop-detection interface ethernet 1/1
– On Linux (simulate loop detection by monitoring LLDP frames):
Install LLDP daemon sudo apt install lldpd -y Capture LLDP frames on two interfaces to detect duplicate MAC+chassis ID sudo tcpdump -i eth0 -vvv -s 1500 -c 10 ether proto 0x88cc
– Windows alternative: Use Wireshark with filter `lldp` to capture announcements. If you see the same chassis ID and port ID from two different interfaces, a loop is present.
How to use it: After a port is error‑disabled due to LLDP loop detection, physically trace the cable and remove the loop. Then re‑enable the port via APIC GUI or CLI:
interface ethernet 1/1 no shutdown
2. MCP (Mis‑Cabling Protocol) – ACI’s Proprietary Loop Hunter
MCP is Cisco’s low‑latency loop detection designed exclusively for ACI fabrics. It exchanges dedicated MCP packets between leaf and spine switches. If an MCP packet returns to the source leaf through any path, the loop is immediately identified, and the receiving port is shut down—often in under a second, much faster than LLDP.
Step‑by‑step guide to configure and test MCP:
– Enable MCP globally on the ACI fabric (APIC GUI or REST API):
Via APIC CLI (ssh to APIC) moquery -c mcpIfPol
– Check MCP counters on a leaf switch:
show mcp internal info show mcp statistics interface ethernet 1/2 View loop‑detected events show logging last 50 | include MCP
– Simulate an MCP loop (lab only): Connect two ports on the same leaf with a patch cable. MCP will detect the loop within a few seconds and error‑disable one port.
After detection, verify the disabled port show interface ethernet 1/3 | include state
– Tune MCP parameters (if needed):
configure terminal mcp loop-detection mcp loop-detection interval 100 milliseconds mcp loop-detection shutdown-time 60
Pro tip: MCP works even when LLDP is disabled, making it a reliable fallback. Always leave MCP enabled on all ACI leaf access ports that connect to unknown devices.
3. STP BPDU Monitoring – Bridging Legacy and Modern Fabrics
ACI does not run STP internally, but it can listen for STP Bridge Protocol Data Units (BPDUs) coming from external switches. If a BPDU returns to the same leaf through a different port, an external Layer 2 loop exists (e.g., two connections from the leaf to a legacy switch with STP disabled or misconfigured). ACI then blocks or shuts down the port to contain the loop.
Step‑by‑step guide for configuration and troubleshooting:
– Enable BPDU guard on ACI leaf access ports (best practice):
configure terminal interface ethernet 1/10 spanning-tree bpduguard enable spanning-tree bpdufilter disable
– View BPDU loop events:
show spanning-tree internal event-history show interface ethernet 1/10 | include BPDU
– On a legacy external switch (Cisco IOS) – simulate loop:
interface gigabitethernet0/1 no spanning-tree dangerous – creates loop risk
– Detect from Linux host (if connected to legacy switch): Use tcpdump to see BPDUs (multicast MAC 01:80:c2:00:00:00)
sudo tcpdump -i eth0 ether dst 01:80:c2:00:00:00 -v
– Mitigation on ACI: Once a loop is detected and the port is error‑disabled, review the external topology. Typically, the solution is to enable STP on the legacy switch or remove redundant links.
Important configuration note: On ACI, you can also configure a dedicated BPDU policy via APIC (Tenants → Policies → Protocol → BPDU). Set action to “block” or “shutdown” when excessive BPDUs are seen.
4. Combining Detection Methods – Defense in Depth
No single mechanism catches every loop. LLDP misses loops when LLDP is disabled on an external device. MCP requires end‑to‑end fabric support. STP BPDU monitoring only works when external switches actually send BPDUs. For maximum protection, enable all three.
Step‑by‑step verification of all three on ACI leaf:
Check LLDP loop detection status show lldp loop-detection Check MCP global status show mcp status Check BPDU policies show running-config | include bpdu
On a Windows host connected to an ACI leaf (to test loop propagation):
Open PowerShell as admin and send a simple broadcast ping to force MAC learning – then monitor if any interface flaps:
ping -b 192.168.1.255 -1 1000 Watch event log for network link state changes Get-EventLog -LogName System -Source "Ndis" -1ewest 20
Prevention script (Linux) to alert on local loops:
!/bin/bash
Detect duplicate MAC on two interfaces
ip link show | grep ether | awk '{print $2}' | sort | uniq -d
if [ $? -eq 0 ]; then
echo "Loop detected – duplicate MAC address" | logger -t LOOP_DETECT
fi
5. Troubleshooting a Real‑World Loop Scenario
Imagine an accidental cable connecting two different leaf switches that belong to the same bridge domain. Broadcast traffic instantly loops, causing CPU spikes and MAC flapping. Here is how you isolate it:
Step 1 – Identify the loop symptom on ACI leaf:
show mac address-table | grep "MOVE" Output shows MAC addresses bouncing between ports
Step 2 – Check which loop‑detection mechanism triggered:
show logging | include "loop|error-disabled|MCP|LLDP"
Step 3 – Locate the error‑disabled port:
show interface status | include err-disabled
Step 4 – Inspect the shutdown reason (from APIC GUI or CLI):
show interface ethernet 1/4 Look for "err-disabled" and "reason: loop-detected"
Step 5 – After physical removal of the loop, restore the port:
interface ethernet 1/4 no shutdown
Windows network admins: Use `Get-1etAdapter` and `Restart-1etAdapter` in PowerShell to bounce a suspected port from the host side, but the real fix must be on the ACI fabric.
What Undercode Say:
– Key Takeaway 1: ACI replaces STP with three proactive loop‑detection mechanisms—LLDP, MCP, and BPDU monitoring—which are faster and more deterministic than traditional Spanning Tree.
– Key Takeaway 2: Mis‑cabling and legacy switch loops are the primary threats; MCP is the fastest detector, but combining all three gives defense in depth.
Analysis (10 lines):
Traditional STP recovers from loops in 30–50 seconds, during which a broadcast storm can cripple a data center. ACI’s MCP shuts down a looping port in under one second, preserving application uptime. However, these mechanisms only detect loops—they cannot prevent someone from physically creating one. Therefore, operational discipline (cable management, port security, and BPDU guard on external links) remains essential. The article correctly highlights that LLDP is useful but can be disabled by attackers or misconfigured devices, making MCP a critical backup. STP BPDU monitoring addresses hybrid cloud scenarios where legacy switches are gradually replaced. For engineers migrating from classic STP-based networks, understanding that ACI does not run STP internally is a mental shift—loop protection is no longer a distributed algorithm but an edge‑based detection system. From a security perspective, an attacker could intentionally create a loop to trigger error‑disable states as a denial‑of‑service (DoS) attack. Mitigation includes port‑disable recovery timers and monitoring logs for frequent loop events. Overall, the ACI approach aligns with modern networking trends: move from reactive to preemptive fault handling using lightweight control plane messages.
Prediction:
– +1 As data centers adopt more spine‑leaf architectures (Cisco ACI, VMware NSX, SONiC), legacy STP will rapidly disappear by 2028. Loop detection will move to per‑device LLDP/MCP hybrid models, reducing human error recovery times from minutes to milliseconds.
– -1 Attackers will develop tools to spoof LLDP or MCP packets, potentially creating false positive loop detections that cause legitimate ports to be error‑disabled—a new vector for targeted DoS attacks on ACI fabrics. Expect mitigation via cryptographic authentication of loop‑detection protocols in future ACI releases.
