Introduction:

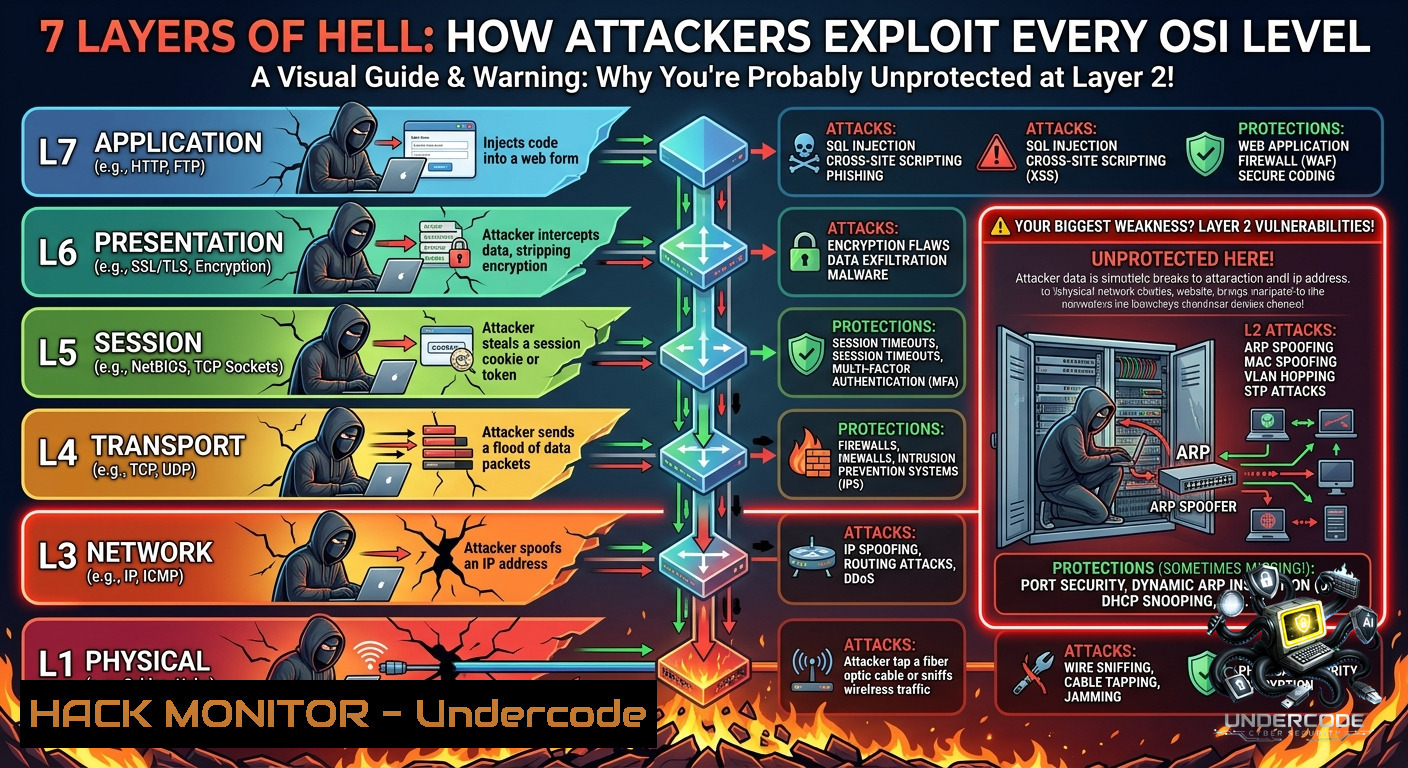

The OSI model isn’t just a textbook concept for certification exams—it’s a battlefield map. Every cyberattack, from a simple ARP spoof to a massive DDoS, targets a specific layer of the network stack. Understanding where SQL injections (Layer 7), SYN floods (Layer 4), and physical tapping (Layer 1) occur allows defenders to deploy precise countermeasures instead of guessing.
Learning Objectives:
– Identify attack vectors across all seven OSI layers and associate them with real-world exploits.
– Execute mitigation commands on Linux and Windows for common Layer 2–7 attacks (ARP spoofing, SYN floods, SSL stripping).
– Implement layer-specific hardening techniques using native OS tools and open-source utilities.
You Should Know:
1. Layer 2 – ARP Spoofing & MAC Flooding: The Silent Man-in-the-Middle
Attackers poison the ARP cache to intercept traffic between two hosts. On a switched network, this turns your machine into a passive (or active) eavesdropper.
Step-by-step guide to detect and prevent ARP spoofing:
On Linux (detect & mitigate):
View ARP table arp -a Enable ARP filtering (kernel hardening) echo 1 > /proc/sys/net/ipv4/conf/all/arp_filter echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore Use arpwatch to monitor MAC-IP changes sudo apt install arpwatch sudo arpwatch -i eth0
On Windows (static ARP entry for gateway):
Display ARP cache arp -a Add static entry (replace IP and MAC) netsh interface ipv4 add neighbors "Ethernet" "192.168.1.1" "aa-bb-cc-dd-ee-ff" Prevent MAC flooding (enable port security on switch – not OS-level but verify with) Get-1etAdapter | Set-1etAdapter -PortHardening Enabled
Attack simulation (educational only): Use `arpspoof` from dsniff suite:
echo 1 > /proc/sys/net/ipv4/ip_forward arpspoof -i eth0 -t 192.168.1.10 192.168.1.1
2. Layer 4 – SYN Flood Attack: Exhausting TCP Connections
A half-open TCP handshake bombards the target, filling its connection queue. Mitigation involves SYN cookies and connection limiting.
Step-by-step mitigation on Linux (sysctl hardening):
Enable SYN cookies (prevents queue exhaustion) sysctl -w net.ipv4.tcp_syncookies=1 Reduce SYN backlog and timeout sysctl -w net.ipv4.tcp_max_syn_backlog=2048 sysctl -w net.ipv4.tcp_syn_retries=2 Make persistent echo "net.ipv4.tcp_syncookies=1" >> /etc/sysctl.conf
On Windows (registry & PowerShell):
Increase TCP dynamic port range netsh int ipv4 set dynamicport tcp start=10000 num=50000 Enable SYN attack protection (Windows Defender Firewall with Advanced Security) New-1etFirewallRule -DisplayName "SYN-Flood-Limit" -Direction Inbound -Protocol TCP -Action Allow -DynamicTarget Any -PolicyStore PersistentStore Monitor SYN attacks via netstat netstat -s | find "SYN"
Test with hping3 (authorized lab only):
sudo hping3 -S -p 80 --flood --rand-source target-ip
3. Layer 6 – SSL Stripping: Forcing HTTP Downgrade
Attackers intercept HTTPS requests and rewrite `https://` links to `http://`, exposing credentials. Mitigation requires HSTS (HTTP Strict Transport Security).
Step-by-step HSTS deployment on Apache/Nginx:
Apache (.htaccess or vhost):
Header always set Strict-Transport-Security "max-age=31536000; includeSubDomains; preload"
Nginx:
add_header Strict-Transport-Security "max-age=31536000; includeSubDomains; preload" always;
Detection on client side (Linux):
Monitor for SSL stripping using tcpdump and grep for "http://" in SSL contexts sudo tcpdump -i eth0 -1 'tcp port 80' -A | grep -i "Location: http"
Windows PowerShell detection:
Capture HTTP redirects to non-HTTPS
Get-1etTCPConnection -State Established | Where-Object {$_.LocalPort -eq 80}
4. Layer 7 – SQL Injection & XSS: Application Layer Exploitation
Malicious input tricks the database into executing unintended commands. Mitigation uses parameterized queries and output encoding.
Step-by-step lab simulation (MySQL + PHP vulnerable script):
Vulnerable query (never use in production):
$query = "SELECT FROM users WHERE user = '" . $_POST['user'] . "'";
Fix with parameterized queries (PDO):
$stmt = $pdo->prepare("SELECT FROM users WHERE user = :user");
$stmt->execute(['user' => $_POST['user']]);
Linux command to test for SQLi (sqlmap):
sqlmap -u "http://target.com/page?id=1" --dbs --batch
Windows (IIS URL Rewrite to block SQL patterns):
<rule name="Block SQL Injection" stopProcessing="true">
<match url="." />
<conditions>
<add input="{QUERY_STRING}" pattern="union.select|drop.table" ignoreCase="true" />
</conditions>
<action type="AbortRequest" />
</rule>
5. Layer 3 – IP Spoofing & Smurf Attacks: Forged Packets and Amplification
Attackers send ICMP echo requests with a spoofed source IP (the victim), causing all hosts on the network to reply simultaneously. Mitigation involves ingress filtering and disabling directed broadcasts.
Step-by-step mitigation on routers (Cisco-style ACL):
access-list 100 deny ip any any fragments access-list 100 permit ip any any
Linux (disable ICMP redirects and broadcast echoes):
Disable ICMP redirect acceptance sysctl -w net.ipv4.conf.all.accept_redirects=0 sysctl -w net.ipv4.conf.all.secure_redirects=0 Ignore ICMP echo requests to broadcast addresses sysctl -w net.ipv4.icmp_echo_ignore_broadcasts=1 Enable source address verification (Reverse Path Filtering) sysctl -w net.ipv4.conf.all.rp_filter=1
Windows (disable IP forwarding and enable IPSec filtering):
Disable IP forwarding (prevents spoofed packet routing) Set-1etIPInterface -Forwarding Disabled Block spoofed traffic using Windows Defender Firewall with Edge Traversal New-1etFirewallRule -DisplayName "Block-Spoofed-ICMP" -Direction Inbound -Protocol ICMPv4 -Action Block -EdgeTraversalPolicy Block
6. Layer 1 – Physical Tapping & Electromagnetic Interference: The Overlooked Perimeter
An attacker with physical access can tap fiber with a splitter, read EM emissions from unshielded cables, or insert a hardware keylogger.
Step-by-step physical hardening checklist:
– Use fiber optic cable with intrusion detection – commercial solutions (e.g., FiberPatrol) monitor for micro-bending.
– Shielded Cat6a/Cat7 cables reduce EMI eavesdropping (use STP instead of UTP).
– Tamper-evident seals on server racks and networking closets.
– Linux command to detect unexpected USB devices (physical keyloggers):
lsusb dmesg | grep -i "new usb" Monitor for HID devices (keyboards/mice) that weren't there before sudo udevadm monitor --property
– Windows PowerShell (audit physical ports):
Get-PnpDevice | Where-Object {$_.FriendlyName -match "Keyboard|Mouse|HID"} | Select-Object FriendlyName, InstanceId, Status
Log USB insertion events from Event Viewer: Microsoft-Windows-DriverFrameworks-UserMode/Operational
What Undercode Say:
– Key Takeaway 1: Most blue teams focus on Layers 3–7 but forget that Layer 2 (ARP spoofing) is often the easiest entry point in flat networks. Static ARP entries and port security should be baseline, not optional.
– Key Takeaway 2: SSL stripping remains effective because misconfigured web servers still omit HSTS headers. A single HTTP redirect can nullify TLS, proving that application-layer crypto isn’t enough without transport-layer enforcement.
Analysis (10 lines):
The OSI model isn’t merely academic – it’s a diagnostic tool. When a SOC analyst sees slow network performance, checking SYN flood counters at Layer 4 (`netstat -s | grep SYN`) or ARP cache poisoning at Layer 2 (`arp -a`) pinpoints the problem faster than any IDS alert. Attackers chain layers: a Layer 1 tap captures Layer 2 frames, which reveal Layer 3 IPs, leading to Layer 7 credentials. Defense-in-depth must cover every layer, from disabling ICMP broadcasts to enforcing HSTS. The commands shown above are not exhaustive but form a practical baseline. Red teams will test Layer 2 before attempting Layer 7 – so harden the data link. Windows admins often ignore ARP because they rely on switches, but rogue DHCP combined with ARP spoofing works across VLANs. Linux sysctl parameters like `rp_filter` and `arp_ignore` are criminally underused. Finally, physical security isn’t “someone else’s job” – an unlocked wiring closet invalidates all your firewalls.
Prediction:
– +1 Layer 2 security will see a resurgence as zero-trust micro-segmentation forces MAC-based authentication (802.1X) into mainstream adoption.
– -1 AI-driven automated exploitation tools will combine multiple OSI layers in real-time (e.g., ARP spoofing + SSL stripping + SQLi), outrunning manual IR playbooks.
– +1 Windows will integrate SYN cookie equivalents natively in future server releases, reducing manual registry tweaks.
– -1 Physical layer attacks will increase with cheaper software-defined radio (SDR) devices capable of EMI sniffing from a parking lot.
– +1 HSTS preload lists become mandatory for all government domains by 2027, closing the SSL stripping vector at scale.
